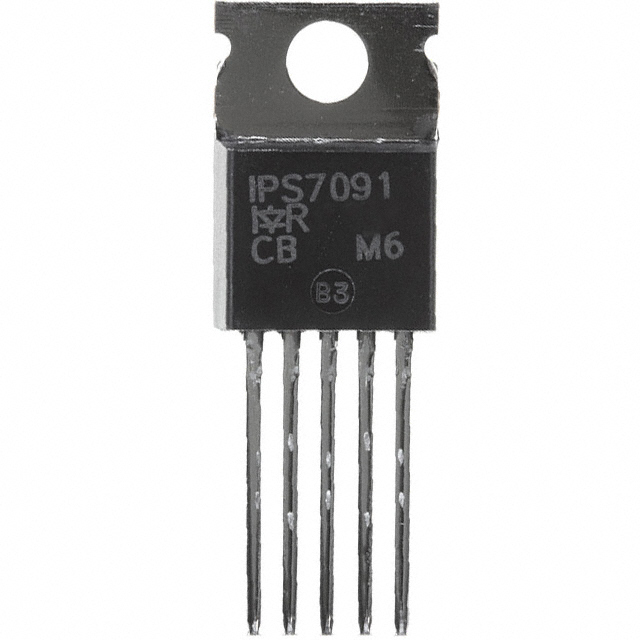

IPS7091PBF
ObsoleteInfineon Technologies
IC PWR SWITCH HI SIDE TO220AB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IPS7091PBF
ObsoleteInfineon Technologies
IC PWR SWITCH HI SIDE TO220AB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IPS7091PBF |
|---|---|
| Current - Output (Max) [Max] | 1.5 A |
| Input Type | Non-Inverting |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Output Configuration | High Side |
| Package / Case | TO-220-5 |
| Rds On (Typ) | 80 mOhm |
| Supplier Device Package | TO-220AB (5-LEAD) |
| Voltage - Load [Max] | 35 V |
| Voltage - Load [Min] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IPS7091 Series
Power Switch/Driver 1.5A TO-220AB (5-LEAD)
