IXYL60N450

Active

IXYS

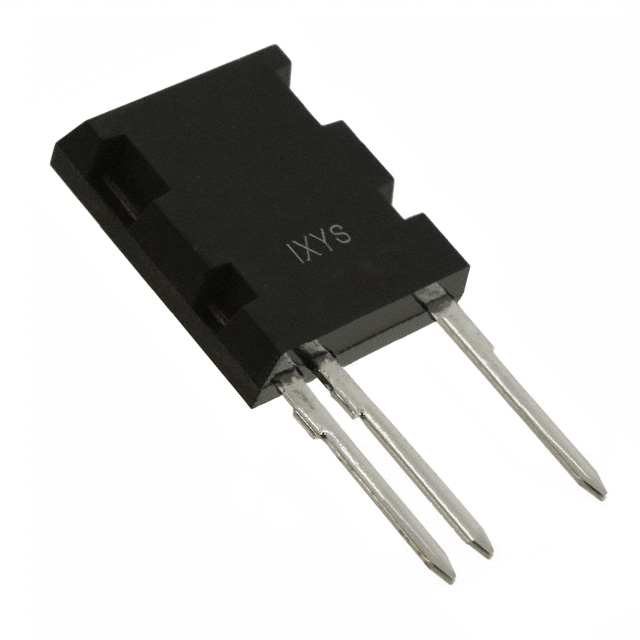

IGBT 4500V 90A ISOPLUSI5

Search across all available documentation for this part.

Active

IXYS

IGBT 4500V 90A ISOPLUSI5

Technical Specifications

Parameters and characteristics for this part

Specification	IXYL60N450

Current - Collector (Ic) (Max) [Max]	90 A
Current - Collector Pulsed (Icm)	680 A
Gate Charge	366 nC
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	ISOPLUSi5-Pak™
Power - Max [Max]	417 W
Supplier Device Package	ISOPLUSi5-Pak™
Td (on/off) @ 25°C	55 ns, 450 ns
Test Condition	15 V, 60 A, 4.7 Ohm, 960 V
Vce(on) (Max) @ Vge, Ic	3.3 V
Voltage - Collector Emitter Breakdown (Max)	4500 V

Part	Td (on/off) @ 25°C	Voltage - Collector Emitter Breakdown (Max)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max) [Max]	Test Condition	Gate Charge	Power - Max [Max]	Current - Collector Pulsed (Icm)	Mounting Type	Vce(on) (Max) @ Vge, Ic	Supplier Device Package
IXYS IXYL60N450	55 ns 450 ns	4500 V	ISOPLUSi5-Pak™	-55 °C	150 °C	90 A	4.7 Ohm 15 V 60 A 960 V	366 nC	417 W	680 A	Through Hole	3.3 V	ISOPLUSi5-Pak™

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT 4500 V 90 A 417 W Through Hole ISOPLUSi5-Pak™
