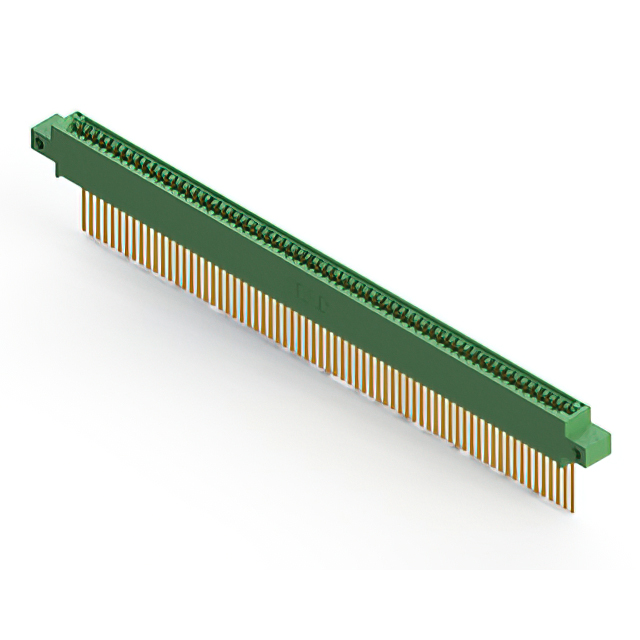

845-069-544-612
ActiveEDAC Inc.
CONN EDGE SINGLE FML 69POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-069-544-612
ActiveEDAC Inc.
CONN EDGE SINGLE FML 69POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-069-544-612 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 69 |
| Number of Positions/Bay/Row [custom] | 69 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
845-069 Series
...
| Part | Contact Type | Color | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Contact Material | Contact Finish | Termination | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Pitch [x] | Pitch [x] | Termination Rows | Material - Insulation | Card Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Read Out | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | Green | 1 | 125 °C | -40 °C | Female | Copper Alloy | Gold | Wire Wrap | 69 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 69 | 2.54 mm | 0.1 in | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Through Hole | Single | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Cantilever | Green | 1 | 125 °C | -40 °C | Female | Copper Alloy | Gold | Wire Wrap | 69 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 69 | 2.54 mm | 0.1 in | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Side Mount Opening Unthreaded | Through Hole | Single | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||
EDAC Inc. | Cantilever | Green | 1 | 125 °C | -40 °C | Female | Copper Alloy | Gold | Wire Wrap | 69 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 69 | 2.54 mm | 0.1 in | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Side Mount Opening Unthreaded | Through Hole | Single | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||
EDAC Inc. | Cantilever | Green | 1 | 125 °C | -40 °C | Female | Copper Alloy | Gold | Solder | 69 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 69 | 2.54 mm | 0.1 in | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Through Hole | Single | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | |||
EDAC Inc. | Cantilever | Green | 1 | 125 °C | -40 °C | Female | Copper Alloy | Gold | Wire Wrap | 69 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 69 | 2.54 mm | 0.1 in | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Through Hole | Single | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Cantilever | Green | 1 | 125 °C | -40 °C | Female | Copper Alloy | Gold | Solder | 69 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 69 | 2.54 mm | 0.1 in | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Through Hole Right Angle | Single | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Cantilever | Green | 1 | 125 °C | -40 °C | Female | Copper Alloy | Gold | Wire Wrap | 69 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 69 | 2.54 mm | 0.1 in | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | Through Hole | Single | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Cantilever | Green | 1 | 125 °C | -40 °C | Female | Copper Alloy | Gold | Wire Wrap | 69 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 69 | 2.54 mm | 0.1 in | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | Through Hole | Single | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Cantilever | Green | 1 | 125 °C | -40 °C | Female | Copper Alloy | Gold | Wire Wrap | 69 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 69 | 2.54 mm | 0.1 in | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Through Hole | Single | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Cantilever | Green | 1 | 125 °C | -40 °C | Female | Copper Alloy | Gold | Wire Wrap | 69 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 69 | 2.54 mm | 0.1 in | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Through Hole | Single | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-069 Series
69 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
