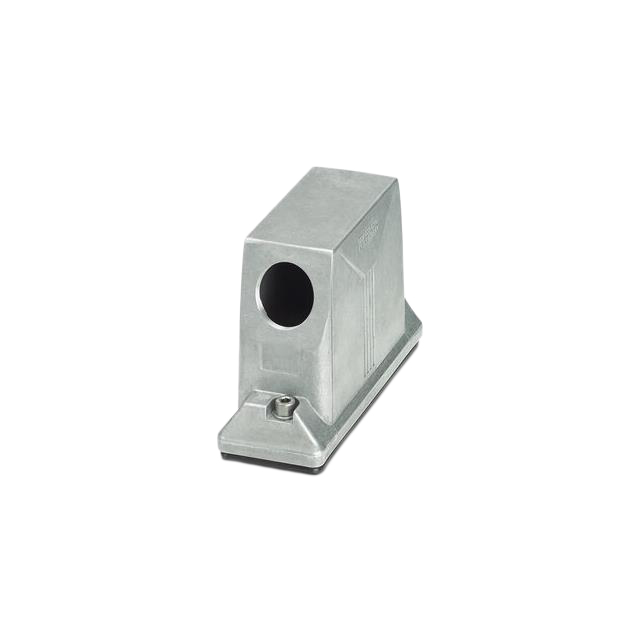

Heavy Duty Power Connectors HC-ADV-B16-HHWH- 1TTM40-MF-BK
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1413433 | ADVANCE Series |
|---|---|---|
| Accessory Type | - | Cover |
| Connector Type | Hood | Hood |
| Features | Salt Water Resistant | Salt Water Resistant |
| For Use With/Related Products | - | Heavycon-Advance® B32 Bases |
| Housing Material | Die Cast, Aluminum | Die Cast, Aluminum |
| Ingress Protection | IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof | IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof, IP67, IP65, IP66/IP67 |
| Lock Location | Screw Locks on Hood | Screw Locks on Hood, Bayonet Lock on Hood |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Ratings | - | IP65 |
| Size | B24 | B16, B10, B6, B24 |
| Size / Dimension | - | 100 mm |
| Size / Dimension | - | 57 mm |
| Size / Dimension [x] | 152 mm | 92 - 152 mm |
| Size / Dimension [x] | 5.984 in | 3.622 - 5.984 " |
| Size / Dimension [y] | 57 mm | 57 mm |
| Size / Dimension [y] | 2.244 " | 2.244 " |
| Size / Dimension [z] | 93.7 mm | 93.7 - 100 mm |
| Size / Dimension [z] | 3.689 " | 3.689 - 3.937 " |
| Specifications | - | Screw Locks |
| Style | Side Entry | Top Entry, Side Entry |
| Thread Size | - | M32, M25 |
Heavy Duty Power Connectors HC-ADV-B16-HHWH- 1TTM40-MF-BK
| Part | Features | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Style | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Thread Size | Ingress Protection | Lock Location | Size | Size / Dimension [z] | Size / Dimension [y] | Accessory Type | Ratings | Specifications | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1587661 | Salt Water Resistant | Aluminum, Die Cast | 125 °C | -40 °C | Hood | Top Entry | 100 mm | 4.961 " | 57 mm | 3.937 " | 126 mm | 2.244 " | M32 | Dust Tight, Water Resistant, Waterproof, IP66, IP68, IP69K | Screw Locks on Hood | B16 | ||||||
Phoenix Contact 1460365 | Salt Water Resistant | Aluminum, Die Cast | 125 °C | -40 °C | Hood | Top Entry | 100 mm | 4.134 " | 57 mm | 3.937 " | 105 mm | 2.244 " | M25 | IP65, IP67 | Bayonet Lock on Hood | B10 | ||||||
Phoenix Contact 1460363 | Salt Water Resistant | Aluminum, Die Cast | 125 °C | -40 °C | Hood | Top Entry | 100 mm | 3.622 " | 57 mm | 3.937 " | 92 mm | 2.244 " | M25 | IP65, IP67 | Bayonet Lock on Hood | B6 | ||||||
Phoenix Contact 1460373 | Salt Water Resistant | Aluminum, Die Cast | 125 °C | -40 °C | Hood | Top Entry | 5.984 in | 3.937 " | 152 mm | 2.244 " | M32 | IP66/IP67 | Bayonet Lock on Hood | B24 | 100 mm | 57 mm | ||||||
Phoenix Contact 1580539 | Cover | IP65 | Screw Locks | Heavycon-Advance® B32 Bases | ||||||||||||||||||
Phoenix Contact 1413433 | Salt Water Resistant | Aluminum, Die Cast | 125 °C | -40 °C | Hood | Side Entry | 93.7 mm | 5.984 in | 57 mm | 3.689 " | 152 mm | 2.244 " | Dust Tight, Water Resistant, Waterproof, IP66, IP68, IP69K | Screw Locks on Hood | B24 |
