1-796375-2
ActiveTE Connectivity Raychem Cable Protection

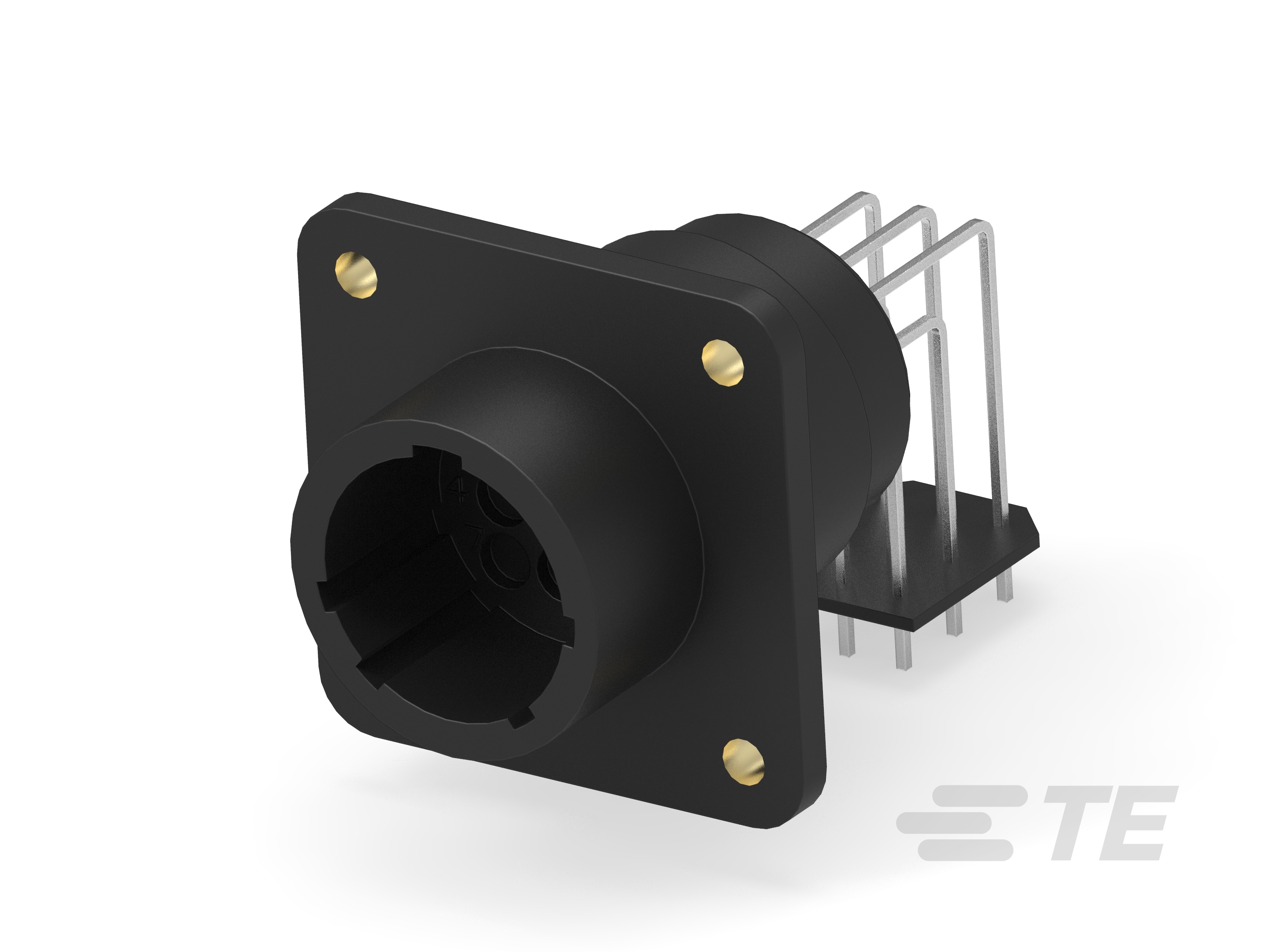

CONN RCPT MALE 9POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Connectors, Interconnects
1-796375-2
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT MALE 9POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-796375-2 |
|---|---|
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold, PdNi +Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Material | Brass |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 9 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Orientation | A |
| Primary Material | Plastic |
| Shell Size - Insert | 13-9 |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 43.27 | |
| 16 | $ 35.71 | |||
| 32 | $ 33.20 | |||
| 80 | $ 31.36 | |||
| 240 | $ 30.68 | |||
Description
General part information
796375 Series
9 Position Circular Connector Receptacle, Male Pins Solder
