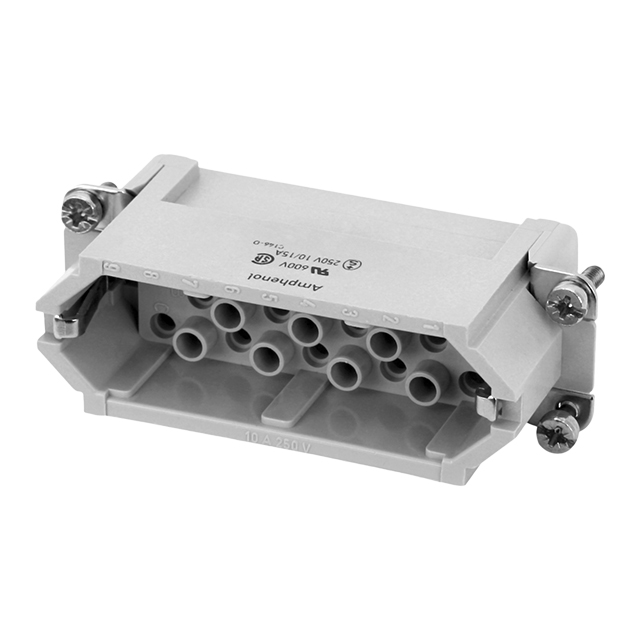

C14610A0250602

Active

Amphenol Tuchel Industrial

INSERT MALE 25POS+1GND CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT MALE 25POS+1GND CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C14610A0250602

Color	Gray
Connector Type	Insert without Contacts
Contact Type	C146 D, C 16-3, M, heavy\|mate®
Current Rating (Amps)	15 A
Gender	Male
Material Flammability Rating	UL94 V-0
Number of Positions	Ground
Number of Positions	25
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	A16
Termination Style	Crimp
Voltage Rating	600 V

Part	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Size	Contact Type	Number of Positions	Number of Positions	Termination Style	Material Flammability Rating	Connector Type	Color	Voltage Rating
Amphenol Tuchel Industrial C14610A0250602	15 A	125 °C	-40 °C	Male	A16	C 16-3 C146 D heavy\|mate® M	Ground	25	Crimp	UL94 V-0	Insert without Contacts	Gray	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 13.76

General part information

Male Insert without Contacts Gray 25+Ground Position Crimp
