3325-1-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.

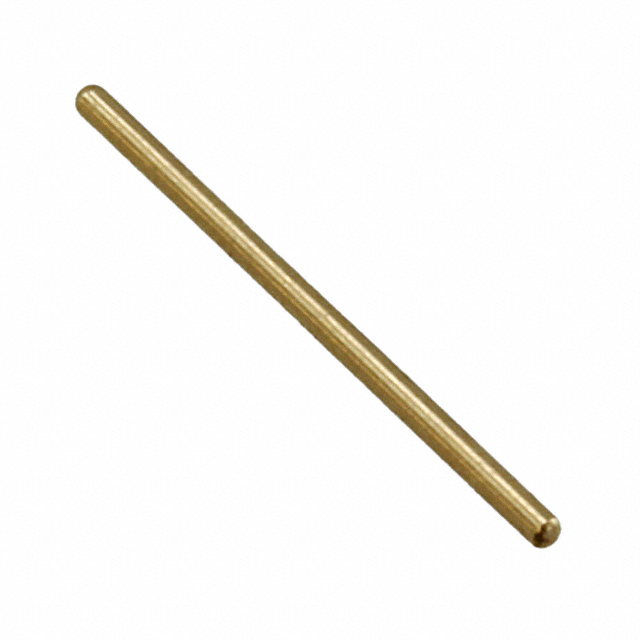

CONN PC PIN CIRC 0.025DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
Documents3325-1-00-15-00-00-03-0
3325-1-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.025DIA GOLD
Deep-Dive with AI
Documents3325-1-00-15-00-00-03-0
Technical Specifications
Parameters and characteristics for this part
| Specification | 3325-1-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.5 in |
| Length - Overall [x] | 12.7 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.025 in |
| Pin Size - Above Flange [diameter] | 0.64 mm |
| Pin Size - Below Flange [diameter] | 0.64 mm |
| Pin Size - Below Flange [diameter] | 0.025 in |
| Terminal Style | Smooth |
| Terminal Type | Single Post |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.27 | |
| 10 | $ 0.23 | |||
| 25 | $ 0.21 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.12 | |||
| 2500 | $ 0.11 | |||
Description
General part information
3325-1 Series
Single Post Terminal Connector Through Hole Gold 0.025" (0.64mm) Dia
