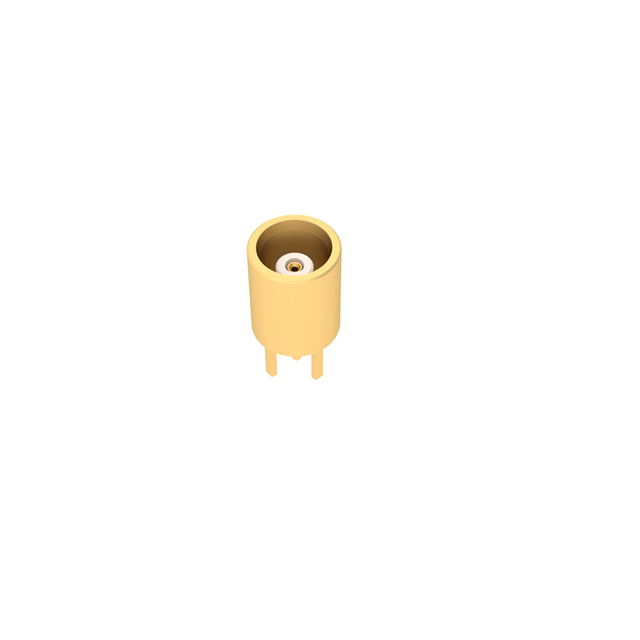

Specification	R113427000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper, Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	6000 MHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Solder
Voltage Rating	335 V

R11342 Series

Part	Mating Cycles	Voltage Rating	Dielectric Material	Body Finish	Center Contact Plating	Operating Temperature (Max)	Operating Temperature (Min)	Body Material	Number of Ports	Connector Type	Fastening Type	Mounting Type	Housing Color	Frequency - Max	Contact Termination	Connector Style	Center Contact Material	Shield Termination	Impedance	Features
Radiall USA, Inc. R113424020W	500 cycles	335 V	Polytetrafluoroethylene (PTFE)	Gold	Gold	155 °C	-55 °C	Brass	1	Female Socket Recepture	Snap-On	Surface Mount	Gold	6000 MHz	Solder	MCX	Beryllium Copper	Solder	50 Ohm
Radiall USA, Inc. R113425000	500 cycles	335 V	Polytetrafluoroethylene (PTFE)	Gold	Gold	155 °C	-55 °C	Beryllium Copper	1	Male Pin Receptacle	Snap-On	Through Hole	Gold	6000 MHz	Solder	MCX	Brass	Solder	50 Ohm
Radiall USA, Inc. R113423000W	500 cycles	335 V	Polytetrafluoroethylene (PTFE)	Gold	Gold	155 °C	-55 °C	Brass	1	Female Socket Jack	Snap-On	Board Edge Cutout Surface Mount	Gold	6000 MHz	Solder	MCX	Beryllium Copper	Solder	50 Ohm
Radiall USA, Inc. R113424020	500 cycles	335 V	Polytetrafluoroethylene (PTFE)	Gold	Gold	155 °C	-55 °C	Brass	1	Female Socket Recepture	Snap-On	Surface Mount	Gold	6000 MHz	Solder	MCX	Beryllium Copper	Solder	50 Ohm
Radiall USA, Inc. R113425097	500 cycles	335 V	Polytetrafluoroethylene (PTFE)	Gold	Gold	125 °C	-55 °C	Beryllium Copper	1	Male Pin Plug	Snap-On	Through Hole	Gold	6000 MHz	Solder	MCX	Bronze	Solder	50 Ohm	Non-Magnetic
Radiall USA, Inc. R113426130	500 cycles	335 V	Polytetrafluoroethylene (PTFE)	Gold	Gold	155 °C	-55 °C	Brass	1	Female Socket Jack	Snap-On	Through Hole	Gold	6000 MHz	Solder	MCX	Beryllium Copper	Solder	50 Ohm
Radiall USA, Inc. R113427000W	500 cycles	335 V	Polytetrafluoroethylene (PTFE)	Gold	Gold	155 °C	-55 °C	Brass	1	Female Socket Jack	Snap-On	Through Hole	Gold	6000 MHz	Solder	MCX	Beryllium Copper	Solder	50 Ohm
Radiall USA, Inc. R113423000	500 cycles	335 V	Polytetrafluoroethylene (PTFE)	Gold	Gold	155 °C	-55 °C	Brass	1	Female Socket Jack	Snap-On	Board Edge Cutout Surface Mount	Gold	6000 MHz	Solder	MCX	Beryllium Copper Brass	Solder	50 Ohm
Radiall USA, Inc. R113426020	500 cycles	335 V	Polytetrafluoroethylene (PTFE)	White Bronze	Gold	155 °C	-55 °C	Brass	1	Female Socket Jack	Snap-On	Through Hole	Silver	6000 MHz	Solder	MCX	Beryllium Copper	Solder	50 Ohm
Radiall USA, Inc. R113426000W	500 cycles	170 V	Polytetrafluoroethylene (PTFE)	Gold	Gold	155 °C	-55 °C	Brass	1	Female Socket Jack	Snap-On	Through Hole	Gold	6000 MHz	Solder	MCX	Beryllium Copper	Solder	50 Ohm
