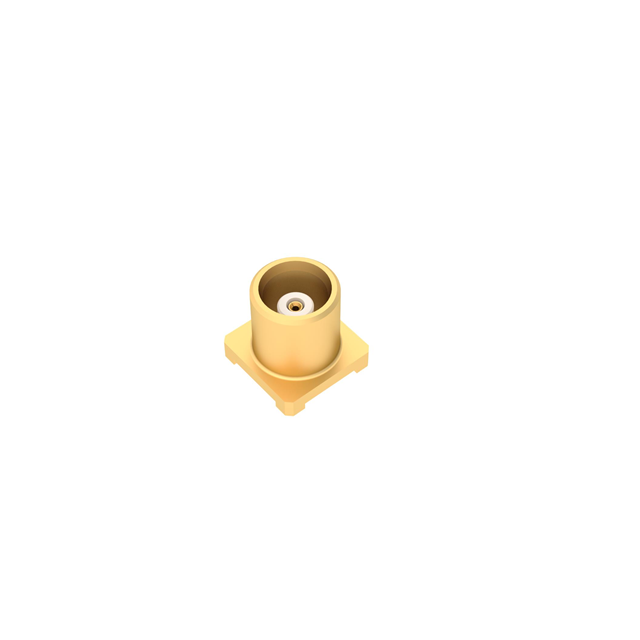

R113424020

Active

Radiall USA, Inc.

MCX / STRAIGHT JACK RECEPTACLE F

Deep-Dive with AI

Search across all available documentation for this part.

R113424020

Active

Radiall USA, Inc.

MCX / STRAIGHT JACK RECEPTACLE F

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R113424020

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	335 V

R11342 Series

Part	Number of Ports	Mating Cycles	Mounting Type	Impedance	Frequency - Max [Max]	Center Contact Plating	Shield Termination	Contact Termination	Center Contact Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Fastening Type	Dielectric Material	Connector Style	Voltage Rating	Body Finish	Body Material	Features
Radiall USA, Inc. R113425000	1	500	Through Hole	50 Ohms	6000 MHz	Gold	Solder	Solder	Brass	Male Pin Receptacle	155 °C	-55 °C	Gold	Snap-On	Polytetrafluoroethylene (PTFE)	MCX	335 V	Gold	Beryllium Copper
Radiall USA, Inc. R113423000W	1	500	Board Edge Cutout Surface Mount	50 Ohms	6000 MHz	Gold	Solder	Solder	Beryllium Copper	Female Socket Jack	155 °C	-55 °C	Gold	Snap-On	Polytetrafluoroethylene (PTFE)	MCX	335 V	Gold	Brass
Radiall USA, Inc. R113424020	1	500	Surface Mount	50 Ohms	6000 MHz	Gold	Solder	Solder	Beryllium Copper	Female Socket Receptacle	155 °C	-55 °C	Gold	Snap-On	Polytetrafluoroethylene (PTFE)	MCX	335 V	Gold	Brass
Radiall USA, Inc. R113425097	1	500	Through Hole	50 Ohms	6000 MHz	Gold	Solder	Solder	Bronze	Male Pin Plug	125 °C	-55 °C	Gold	Snap-On	Polytetrafluoroethylene (PTFE)	MCX	335 V	Gold	Beryllium Copper	Non-Magnetic
Radiall USA, Inc. R113427000W	1	500	Through Hole	50 Ohms	6000 MHz	Gold	Solder	Solder	Beryllium Copper	Female Socket Jack	155 °C	-55 °C	Gold	Snap-On	Polytetrafluoroethylene (PTFE)	MCX	335 V	Gold	Brass
Radiall USA, Inc. R113423000	1	500	Board Edge Cutout Surface Mount	50 Ohms	6000 MHz	Gold	Solder	Solder	Beryllium Copper Brass	Female Socket Jack	155 °C	-55 °C	Gold	Snap-On	Polytetrafluoroethylene (PTFE)	MCX	335 V	Gold	Brass
Radiall USA, Inc. R113426020	1	500	Through Hole	50 Ohms	6000 MHz	Gold	Solder	Solder	Beryllium Copper	Female Socket Jack	155 °C	-55 °C	Silver	Snap-On	Polytetrafluoroethylene (PTFE)	MCX	335 V	White Bronze	Brass
Radiall USA, Inc. R113426000W	1	500	Through Hole	50 Ohms	6000 MHz	Gold	Solder	Solder	Beryllium Copper	Female Socket Jack	155 °C	-55 °C	Gold	Snap-On	Polytetrafluoroethylene (PTFE)	MCX	170 V	Gold	Brass
Radiall USA, Inc. R113424000W	1	500	Surface Mount	50 Ohms	6000 MHz	Gold	Solder	Solder	Beryllium Copper	Female Socket Receptacle	155 °C	-55 °C	Gold	Snap-On	Polytetrafluoroethylene (PTFE)	MCX	335 V	Gold	Brass
Radiall USA, Inc. R113424000	1	500	Surface Mount	50 Ohms	6000 MHz	Gold	Solder	Solder	Beryllium Copper Brass	Female Socket Jack	155 °C	-55 °C	Gold	Snap-On	Polytetrafluoroethylene (PTFE)	MCX	335 V	Gold	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 2.97

Description

General part information

R11342 Series

MCX Connector Receptacle, Female Socket 50 Ohms Surface Mount Solder
