FF1400R17IP4BOSA1

Active

Infineon Technologies

THE FF1400R17IP4 IS A 1700 V, 1400 A DUAL IGBT MODULE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FF1400R17IP4BOSA1

Active

Infineon Technologies

THE FF1400R17IP4 IS A 1700 V, 1400 A DUAL IGBT MODULE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FF1400R17IP4BOSA1

Configuration	2 Independent
Current - Collector (Ic) (Max) [Max]	1400 A
Current - Collector Cutoff (Max) [Max]	5 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	110 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Package / Case	Module
Power - Max [Max]	955000 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.2 V
Voltage - Collector Emitter Breakdown (Max)	1700 V

FF1400 Series

Part	Package / Case	IGBT Type	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Input	Vce(on) (Max) @ Vge, Ic	Supplier Device Package	Input Capacitance (Cies) @ Vce	Configuration	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max)
Infineon Technologies FF1400R12IP4BOSA1	Module	Trench Field Stop	1400 A	5 mA	Chassis Mount	1200 V	Standard	2.05 V	Module	82 nF	2 Independent
Infineon Technologies FF1400R12IP4PBOSA1	Module	Trench Field Stop	1400 A	5 mA	Chassis Mount	1200 V	Standard	2.05 V	Module	82 nF	2 Independent	1400000 W
Infineon Technologies FF1400R17IP4BOSA1	Module	Trench Field Stop	1400 A	5 mA	Chassis Mount		Standard	2.2 V	Module	110 nF	2 Independent	955000 W	1700 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 780.87
		10	$ 753.63

Description

General part information

FF1400 Series

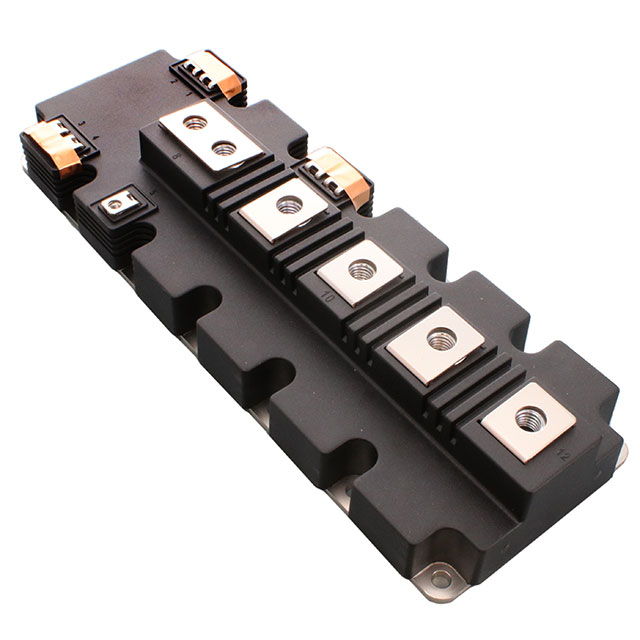

PrimePACK™ 31700 V, 1400 A half-bridge dualIGBT modulewith TRENCHSTOP™ IGBT4, Emitter Controlled 4 diode, NTC and soft switching chip. Also available with pre-appliedThermal Interface Material.
