73094-2

Active

Pomona Electronics

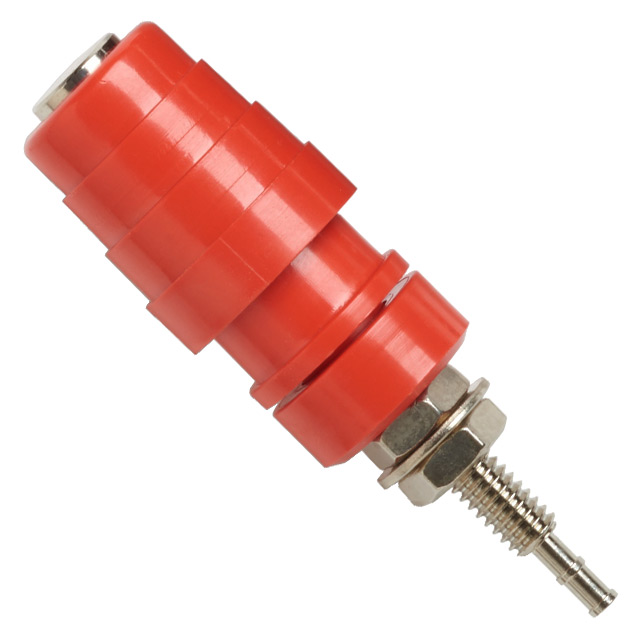

CONN BIND POST KNURLED RED

Search across all available documentation for this part.

Active

Pomona Electronics

CONN BIND POST KNURLED RED

Technical Specifications

Parameters and characteristics for this part

Specification	73094-2

Color	Red
Cross Hole Diameter [diameter]	7.67 mm
Cross Hole Diameter [diameter]	0.302 in
Current Rating (Amps)	15 A
Material - Body	Brass
Panel Thickness	0.188 in
Panel Thickness	4.78 mm
Plating - Body	Nickel
Termination	Turret, Threaded
Type	Standard
Voltage Rating	1000 VDC

Part	Voltage Rating	Current Rating (Amps)	Cross Hole Diameter [diameter]	Cross Hole Diameter [diameter]	Termination	Plating - Body	Type	Material - Body	Panel Thickness	Panel Thickness	Color
Pomona Electronics 73094-0	1000 VDC	15 A	7.67 mm	0.302 in	Threaded Turret	Nickel	Standard	Brass	0.188 in	4.78 mm	Black
Pomona Electronics 73094-2	1000 VDC	15 A	7.67 mm	0.302 in	Threaded Turret	Nickel	Standard	Brass	0.188 in	4.78 mm	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 15.29

General part information

Binding Post Connector Standard Knurled Red Nickel
