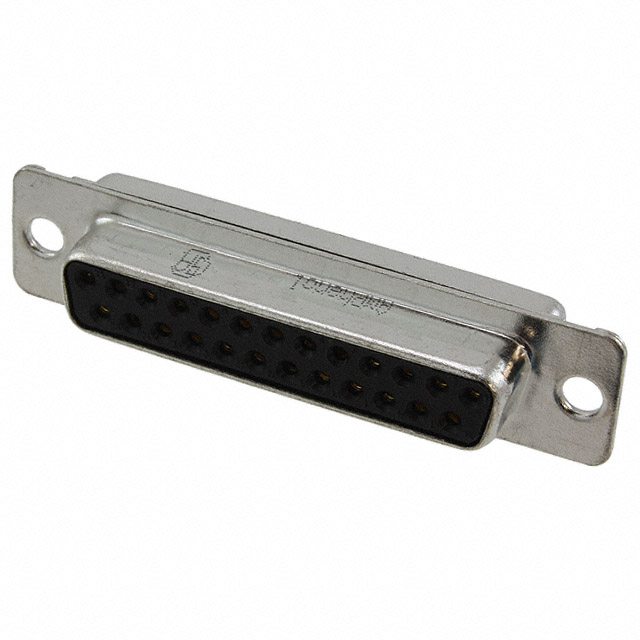

L77DB25SV

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 25POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L77DB25SV

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 25POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77DB25SV

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	300 VDC

L77DB25 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish	Number of Rows	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Type	Voltage Rating	Contact Material	Dielectric Material	Color	Termination	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Mounting Type	Connector Style	Current Rating (Amps)	Backset Spacing	Backset Spacing	Features	Wire Gauge
Amphenol ICC (Commercial Products) L77DB25SOL2	-55 °C	125 °C	UL94 V-0	Gold	2	Receptacle Female Sockets	B DB	3	Signal	300 VDC	Brass	Thermoplastic Glass Filled	Black	Solder	8 çin	0.203 çm	Housing/Shell (Unthreaded)	Through Hole	D-Sub	7.5 A
Amphenol ICC (Commercial Products) L77DB25SCVF	-55 °C	125 °C	UL94 V-0	Gold	2	Receptacle Female Sockets	B DB	3	Signal	300 VDC	Brass	Thermoplastic Glass Filled	Black	Solder	8 çin	0.203 çm	Female Screwlock (4-40) Mating Side	Through Hole Right Angle	D-Sub	7.5 A	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L77DB25SAM4	-55 °C	125 °C	UL94 V-0	Gold	2	Receptacle Female Sockets	B DB	3	Signal	300 VDC	Brass	Thermoplastic Glass Filled	Black	Solder	8 çin	0.203 çm	Housing/Shell (Unthreaded)	Through Hole Right Angle	D-Sub	7.5 A	0.319 in	8.1 mm	Mounting Brackets
Amphenol ICC (Commercial Products) L77DB25SST2	-55 °C	125 °C	UL94 V-0	Gold	2	Receptacle Female Sockets	B DB	3	Signal	300 VDC	Brass	Thermoplastic Glass Filled	Black	Screw	15 µin	0.38 µm	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	D-Sub	7.5 A				18 AWG
Amphenol ICC (Commercial Products) L77DB25SV	-55 °C	125 °C	UL94 V-0	Gold	2	Receptacle Female Sockets	B DB	3	Signal	300 VDC	Brass	Thermoplastic Glass Filled	Black	Solder	8 çin	0.203 çm	Housing/Shell (Unthreaded)	Through Hole	D-Sub	7.5 A
Amphenol ICC (Commercial Products) L77DB25SC309	-55 °C	125 °C	UL94 V-0	Gold	2	Receptacle Female Sockets	B DB	3	Signal	300 VDC	Brass	Thermoplastic Glass Filled	Black		30 Áin	0.76 Ám	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	D-Sub	7.5 A
Amphenol ICC (Commercial Products) L77DB25SU	-55 °C	125 °C	UL94 V-0	Gold	2	Receptacle Female Sockets	B DB	3	Signal	300 VDC	Brass	Thermoplastic Glass Filled	Black	Solder	8 çin	0.203 çm	Housing/Shell (Unthreaded)	Through Hole	D-Sub	7.5 A
Amphenol ICC (Commercial Products) L77DB25S1BUN	-55 °C	125 °C	UL94 V-0	Gold	2	Receptacle Female Sockets	B DB	3	Signal	300 VDC	Brass	Thermoplastic Glass Filled	Black	Solder	8 çin	0.203 çm	Housing/Shell (Unthreaded)	Through Hole Right Angle	D-Sub	7.5 A	0.406 in	10.3 mm	Mounting Brackets
Amphenol ICC (Commercial Products) L77DB25SAM4BRM6	-55 °C	125 °C	UL94 V-0	Gold	2	Receptacle Female Sockets	B DB	3	Signal	300 VDC	Brass	Thermoplastic Glass Filled	Black	Solder	8 çin	0.203 çm	Housing/Shell (Unthreaded)	Through Hole Right Angle	D-Sub	7.5 A	0.59 "	14.99 mm	Board Lock Mounting Brackets
Amphenol ICC (Commercial Products) L77DB25S1AUN	-55 °C	125 °C	UL94 V-0	Gold	2	Receptacle Female Sockets	B DB	3	Signal	300 VDC	Brass	Thermoplastic Glass Filled	Black	Solder	8 çin	0.203 çm	Housing/Shell (Unthreaded)	Through Hole Right Angle	D-Sub	7.5 A	0.406 in	10.3 mm	Mounting Brackets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.59
		10	$ 8.50
		25	$ 8.18
		50	$ 7.85
		100	$ 7.68

Description

General part information

L77DB25 Series

25 Position D-Sub Receptacle, Female Sockets Connector
