Q-0E02Y0008108i

Active

Amphenol Custom Cable

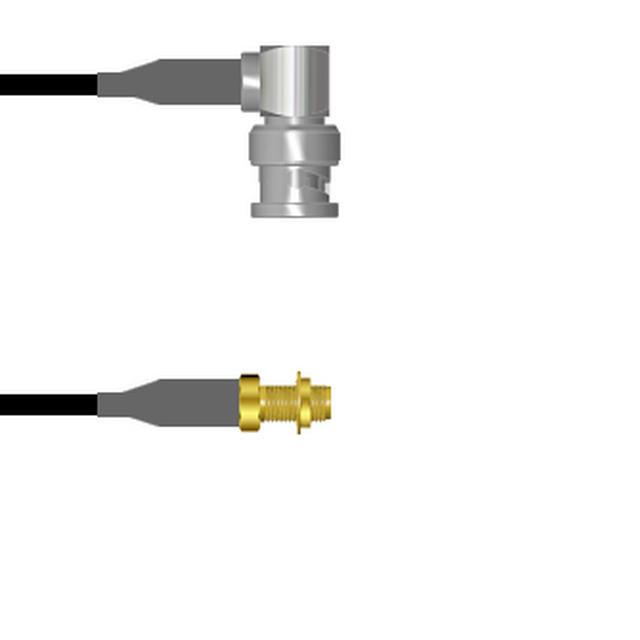

CBL ASSY BNC-SMA PLUG-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0E02Y0008108i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA PLUG-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0E02Y0008108i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0E02Y0 Series

Part	2nd Connector Mounting Type	Cable Type	Color	2nd Connector Mounting Feature	Connector Impedance	Frequency - Max [Max]	1st Connector Mounting Type	2nd Connector	1st Contact Gender	Length [x]	Length [x]	2nd Contact Gender	Features	1st Connector	Style	Overall Impedance	Cable Impedance	Length	Length	Length
Amphenol Custom Cable Q-0E02Y0008018i	Panel Mount	RG-58	Black	Bulkhead - Front Side Nut	50 Ohms	1 GHz	Free Hanging (In-Line)	SMA Jack	Male	457.2 mm	457.2 mm	Female	Shielded	BNC Plug Right Angle	BNC to SMA	50 Ohms	50 Ohms
Amphenol Custom Cable Q-0E02Y0008060i	Panel Mount	RG-58	Black	Bulkhead - Front Side Nut	50 Ohms	1 GHz	Free Hanging (In-Line)	SMA Jack	Male			Female	Shielded	BNC Plug Right Angle	BNC to SMA	50 Ohms	50 Ohms	5 ft	1.5 m	5 '
Amphenol Custom Cable Q-0E02Y0008012i	Panel Mount	RG-58	Black	Bulkhead - Front Side Nut	50 Ohms	1 GHz	Free Hanging (In-Line)	SMA Jack	Male			Female	Shielded	BNC Plug Right Angle	BNC to SMA	50 Ohms	50 Ohms		304.8 mm	12 "
Amphenol Custom Cable Q-0E02Y0008048i	Panel Mount	RG-58	Black	Bulkhead - Front Side Nut	50 Ohms	1 GHz	Free Hanging (In-Line)	SMA Jack	Male			Female	Shielded	BNC Plug Right Angle	BNC to SMA	50 Ohms	50 Ohms	4 ft	1200 mm	48 in
Amphenol Custom Cable Q-0E02Y0008108i	Panel Mount	RG-58	Black	Bulkhead - Front Side Nut	50 Ohms	1 GHz	Free Hanging (In-Line)	SMA Jack	Male			Female	Shielded	BNC Plug Right Angle	BNC to SMA	50 Ohms	50 Ohms	9 ft	2.7 m	108 in
Amphenol Custom Cable Q-0E02Y0008009i	Panel Mount	RG-58	Black	Bulkhead - Front Side Nut	50 Ohms	1 GHz	Free Hanging (In-Line)	SMA Jack	Male			Female	Shielded	BNC Plug Right Angle	BNC to SMA	50 Ohms	50 Ohms		228.6 mm	9 "
Amphenol Custom Cable Q-0E02Y0008006i	Panel Mount	RG-58	Black	Bulkhead - Front Side Nut	50 Ohms	1 GHz	Free Hanging (In-Line)	SMA Jack	Male			Female	Shielded	BNC Plug Right Angle	BNC to SMA	50 Ohms	50 Ohms		152.4 mm	6 in
Amphenol Custom Cable Q-0E02Y0008024i	Panel Mount	RG-58	Black	Bulkhead - Front Side Nut	50 Ohms	1 GHz	Free Hanging (In-Line)	SMA Jack	Male			Female	Shielded	BNC Plug Right Angle	BNC to SMA	50 Ohms	50 Ohms		609.6 mm	24 "
Amphenol Custom Cable Q-0E02Y0008072i	Panel Mount	RG-58	Black	Bulkhead - Front Side Nut	50 Ohms	1 GHz	Free Hanging (In-Line)	SMA Jack	Male			Female	Shielded	BNC Plug Right Angle	BNC to SMA	50 Ohms	50 Ohms	6 ft	1.8 m	72 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 115.98
		25	$ 113.70
		50	$ 111.42
		100	$ 109.15
		250	$ 106.87

Description

General part information

Q-0E02Y0 Series

Cable Assembly Coaxial BNC to SMA RG-58 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
