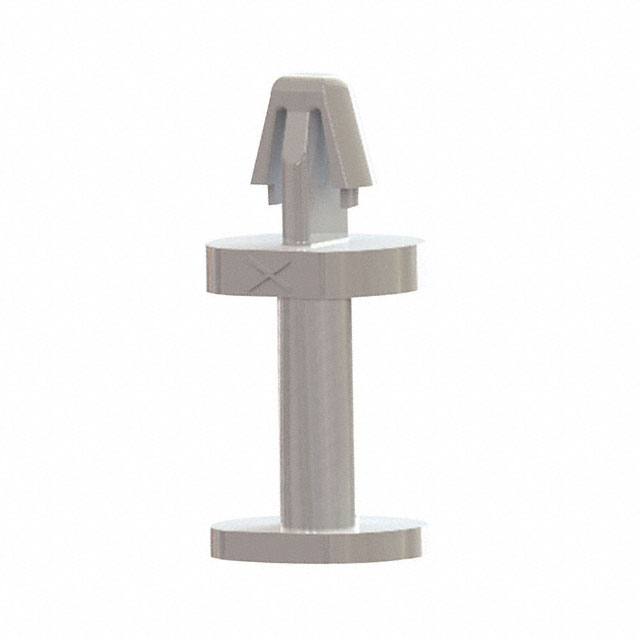

PSD-14M-19
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK REST MNT 14MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSD-14M-19 |
|---|---|
| Between Board Height | 0.551 in |
| Between Board Height | 14 mm |
| Holding Type | Snap Lock |
| Length - Overall [x] | 0.762 " |
| Length - Overall [x] | 19.35 mm |
| Material | Nylon |
| Mounting Type | Resting Mount |
| Support Hole Diameter [diameter] | 0.122 in |
| Support Hole Diameter [diameter] | 3.1 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.35 | |
| 10 | $ 0.27 | |||
| 25 | $ 0.24 | |||
| 50 | $ 0.22 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| 2500 | $ 0.16 | |||
Description
General part information
PSD-14M Series
Board Support Snap Lock / Resting Mount Nylon 0.551" (14.00mm)
