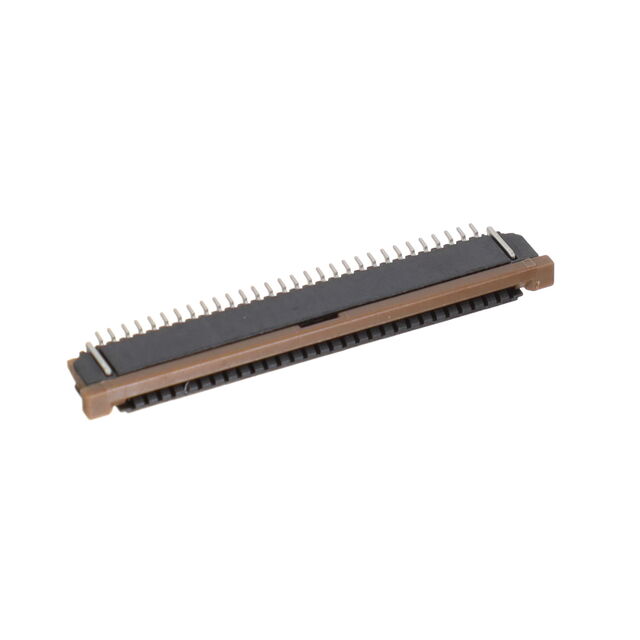

SFW30R-4STE1LF

Active

Amphenol ICC (FCI)

CONN FFC FPC TOP 30POS 1MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet fci basics ffc fpc productpresentation Other Related Document +2

SFW30R-4STE1LF

Active

Amphenol ICC (FCI)

CONN FFC FPC TOP 30POS 1MM R/A

Deep-Dive with AI

DocumentsDatasheet fci basics ffc fpc productpresentation Other Related Document +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFW30R-4STE1LF

Actuator Color	Brown
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type	Tapered, Notched
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Phosphor Bronze
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	0.106 in
Height Above Board [z]	2.7 mm
Housing Color	Black
Housing Material	Polyphenylene Sulfide (PPS), Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	30
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	100 V

SFW30R Series

Part	Pitch [x]	Pitch [x]	Voltage Rating	Contact Material	Number of Positions	Locking Feature	FFC, FCB Thickness	Flat Flex Type	Housing Material	Material Flammability Rating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector/Contact Type	Cable End Type	Actuator Color	Housing Color	Contact Finish	Actuator Material	Mating Cycles	Height Above Board [z]	Height Above Board [z]	Termination	FFC, FCB Thickness [z]	Features
Amphenol ICC (FCI) SFW30R-2STE1LF	0.039 in	1 mm	100 V	Phosphor Bronze	30	Slide Lock	0.3 mm	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Surface Mount Right Angle	105 ░C	-55 °C	Contacts Top	Tapered	Black	Brown	Tin	Polyphenylene Sulfide (PPS) Glass Filled	20	0.106 in	2.7 mm	Solder
Amphenol ICC (FCI) SFW30R-1STAE1LF	0.039 in	1 mm	100 V	Phosphor Bronze	30	Slide Lock	0.33 mm	FPC	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Surface Mount Right Angle	105 ░C	-55 °C	Contacts Bottom	Notched	Brown	Brown	Gold	Polyphenylene Sulfide (PPS) Glass Filled	20	0.106 in	2.7 mm	Solder
Amphenol ICC (FCI) SFW30R-1STE1LF	0.039 in	1 mm	100 V	Phosphor Bronze	30	Slide Lock	0.3 mm	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Surface Mount Right Angle	105 ░C	-55 °C	Contacts Bottom	Straight Tapered		Brown	Tin	Polyphenylene Sulfide (PPS) Glass Filled	20	0.106 in	2.7 mm	Kinked Pin
Amphenol ICC (FCI) SFW30R-1STGE1LF	0.039 in	1 mm	100 V	Phosphor Bronze	30	Slide Lock	0.33 mm	FPC	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Surface Mount Right Angle	105 ░C	-55 °C	Contacts Bottom	Tapered	Black	Brown	Gold	Polyphenylene Sulfide (PPS) Glass Filled	20	0.106 in	2.7 mm	Solder
Amphenol ICC (FCI) SFW30R-3STE1LF	0.039 in	1 mm	100 V	Phosphor Bronze	30		0.3 mm	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Surface Mount Right Angle	105 ░C	-55 °C	Contacts Bottom	Straight Tapered		Black	Tin	Polyphenylene Sulfide (PPS) Glass Filled	20	0.106 in	2.7 mm	Kinked Pin
Amphenol ICC (FCI) SFW30R-2STE9LF	0.039 in	1 mm	100 V	Phosphor Bronze	30	Slide Lock		FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Surface Mount Right Angle	105 ░C	-55 °C	Contacts Top	Straight Tapered	Black	Brown	Tin	Polyphenylene Sulfide (PPS) Glass Filled	20	0.106 in	2.7 mm	Solder	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW30R-1STE1HLF	0.039 in	1 mm	100 V	Phosphor Bronze	30	Slide Lock		FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	UL94 V-0	Surface Mount Right Angle	105 ░C	-55 °C	Contacts Bottom	Straight Tapered	Black	Black	Tin	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	20	0.106 in	2.7 mm	Solder	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW30R-1STE1	0.039 in	1 mm		Phosphor Bronze	30	Slide Lock		FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Surface Mount Right Angle			Contacts Bottom	Straight Tapered	Black	Brown	Tin Alloy	Polyphenylene Sulfide (PPS) Glass Filled		0.106 in	2.7 mm	Solder	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW30R-5STZE1LF	0.039 in	1 mm	100 V	Phosphor Bronze	30	Slide Lock		CIC	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Surface Mount Right Angle	105 ░C	-55 °C	Contacts Bottom	Straight Tapered	Black	Brown	Tin	Polyphenylene Sulfide (PPS) Glass Filled	10	0.106 in	2.7 mm	Solder	0.3 mm 0.33 mm	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW30R-4STE1LF	0.039 in	1 mm	100 V	Phosphor Bronze	30	Slide Lock		FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Surface Mount Right Angle	105 ░C	-55 °C	Contacts Top	Notched Tapered	Brown	Black	Tin	Polyphenylene Sulfide (PPS) Glass Filled	20	0.106 in	2.7 mm	Solder	0.3 mm 0.33 mm	Solder Retention Zero Insertion Force (ZIF)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.41
		10	$ 1.07
		25	$ 0.96
		50	$ 0.89
		100	$ 0.82
		250	$ 0.74
		500	$ 0.69
		1000	$ 0.64
	Tape & Reel (TR)	2000	$ 0.51

Description

General part information

SFW30R Series

30 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
