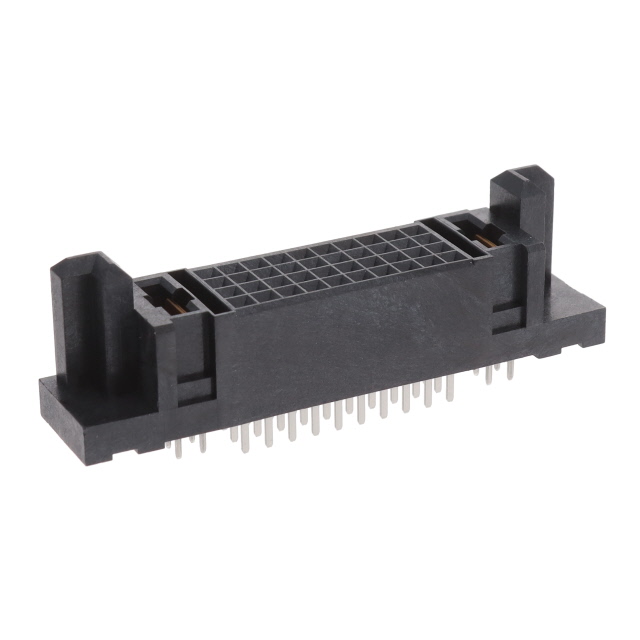

PESC-01-40-01-01-L-VT
ActiveSamtec Inc.
.100" POWERSTRIP/40 A SIGNAL/PO
Deep-Dive with AI
Search across all available documentation for this part.
PESC-01-40-01-01-L-VT
ActiveSamtec Inc.
.100" POWERSTRIP/40 A SIGNAL/PO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PESC-01-40-01-01-L-VT |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post | 0.097 in |
| Contact Length - Post | 2.47 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.497 in |
| Insulation Height | 12.62 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions [custom] | 40 |
| Number of Positions [custom] | 2 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.42 | |
| 10 | $ 12.10 | |||
| 25 | $ 10.78 | |||
| 50 | $ 8.80 | |||
| 100 | $ 8.38 | |||
Description
General part information
PESC-01 Series
42 (40 + 2 Power) Position Receptacle Connector Through Hole Gold
