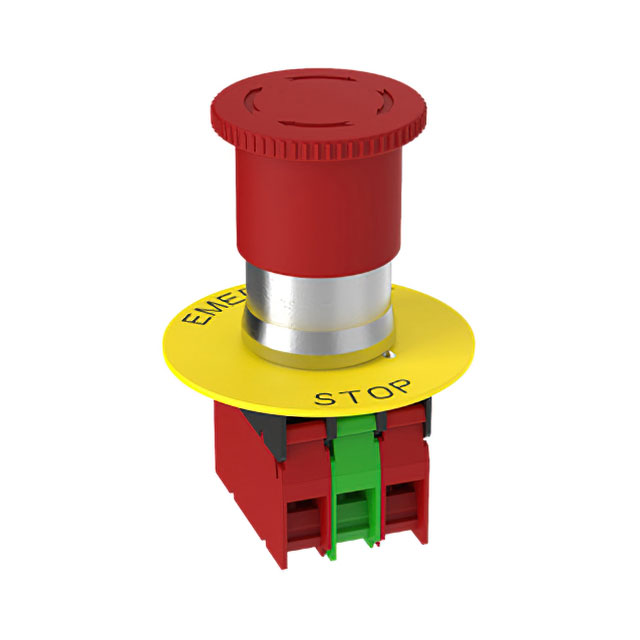

SSA-EBM-12L

Active

BANNER ENGINEERING

SWITCH E-STOP TWIST RESET 2A 24V

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SWITCH E-STOP TWIST RESET 2A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	SSA-EBM-12L

Circuit	3PST-2NC/1NO
Current Rating (Amps)	2 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Reset Operation	Twist
Switch Function	On-Off, Off-On
Termination Style	Screw Terminal
Voltage Rating - DC	24 V

Part	Voltage Rating - DC	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Style	Switch Function	Reset Operation	Circuit	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Features
BANNER ENGINEERING SSA-EBM-11E	24 V	IP65 - Dust Tight Water Resistant	-25 °C	60 °C	Chassis Mount	Screw Terminal	Off-On On-Off	Twist	DPST-NO/NC	2 A	22 mm	Control Box Enclosure
BANNER ENGINEERING SSA-EBM-02E	24 V	IP65 - Dust Tight Water Resistant	-25 °C	60 °C	Chassis Mount	Screw Terminal	On-Off	Twist	DPST-NC	2 A	22 mm	Control Box Enclosure
BANNER ENGINEERING SSA-EBM-02L	30 V	IP65 - Dust Tight Water Resistant	-25 °C	60 °C	Panel Mount Front	Screw Terminal	On-Off	Twist	DPST-NC	2 A	22 mm
BANNER ENGINEERING SSA-EBM-12L	24 V	IP65 - Dust Tight Water Resistant	-25 °C	60 °C	Panel Mount Front	Screw Terminal	Off-On On-Off	Twist	3PST-2NC/1NO	2 A	22 mm
BANNER ENGINEERING SSA-EBM-12E	24 V	IP65 - Dust Tight Water Resistant	-25 °C	60 °C	Chassis Mount	Screw Terminal	Off-On On-Off	Twist	3PST-2NC/1NO	2 A	22 mm	Control Box Enclosure
BANNER ENGINEERING SSA-EBM-11L	30 V	IP65 - Dust Tight Water Resistant	-25 °C	60 °C	Panel Mount Front	Screw Terminal	Off-On On-Off	Twist	DPST-NO/NC	2 A	22 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 104.00
Newark	Each	1	$ 106.00

General part information

SWITCH E-STOP TWIST RESET 2A 24V
