1376382-1

Active

TE Connectivity AMP Connectors

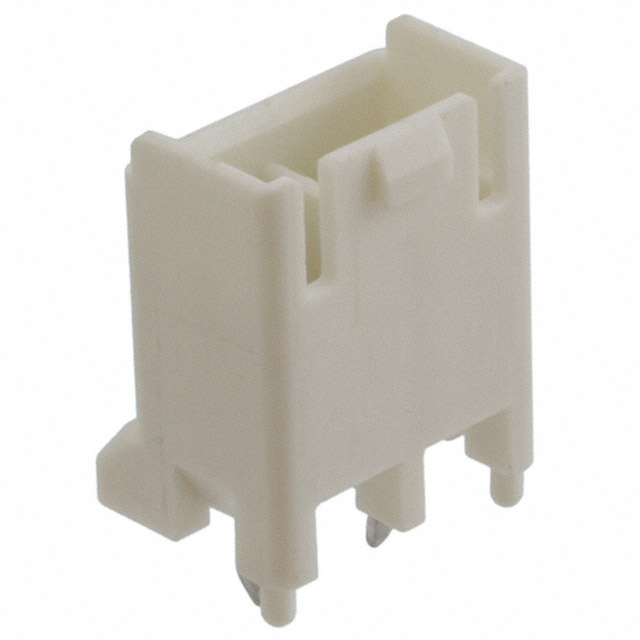

CONN HEADER VERT 2POS 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1376382-1

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 2POS 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.72
		10	$ 0.70
		200	$ 0.56
		1000	$ 0.44
		5000	$ 0.38
		10000	$ 0.36

Description

General part information

1376382 Series

Connector Header Through Hole 2 position 0.197" (5.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1376382-1	1376382 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Post	3.5 mm	3.5 mm
Contact Length - Post	0.138 in	0.138 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Rectangular	Rectangular
Contact Type	Tab	Tab
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Board Guide	Board Guide
Insulation Color	Natural	Natural, Yellow
Insulation Height	14.1 mm	14.1 mm
Insulation Height	0.555 in	0.555 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	19.4 mm	19.4 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	2	2
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	5 mm	5 mm
Pitch - Mating	0.197 "	0.197 "
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Kinked Pin, Solder	Kinked Pin, Solder, Solder
Voltage Rating	300 VAC	300 VAC

1376382 Series

CONN HEADER VERT 2POS 5MM

Part	Mounting Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Features	Insulation Color	Contact Material	Contact Shape	Fastening Type	Contact Type	Insulation Height	Insulation Height	Material Flammability Rating	Applications	Shrouding	Connector Type	Number of Positions Loaded	Voltage Rating	Mated Stacking Heights	Insulation Material	Contact Finish - Post	Number of Positions	Style
TE Connectivity AMP Connectors 1376382-1	Through Hole	1	-40 °C	105 ░C	Kinked Pin, Solder	Varies by Wire Gauge	5 mm	0.197 "	3.5 mm	0.138 in	Board Guide	Natural	Copper Alloy	Rectangular	Locking Ramp	Tab	14.1 mm	0.555 in	UL94 V-0	General Purpose	Shrouded - 4 Wall	Header	All	300 VAC	19.4 mm	Polyamide (PA66), Nylon 6/6, Glass Filled	Tin	2	Board to Cable/Wire
