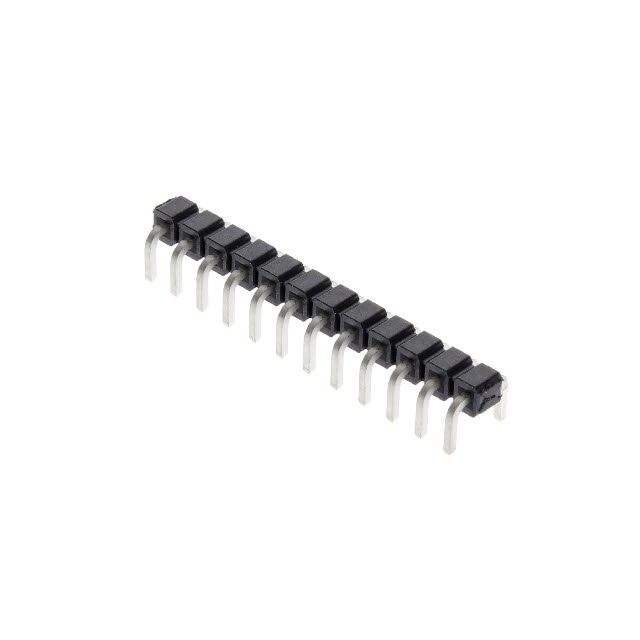

BTSW-112-01-T-S
ActiveSamtec Inc.
CONN JUMPER 2.54MM 24POS
Deep-Dive with AI
Search across all available documentation for this part.
BTSW-112-01-T-S
ActiveSamtec Inc.
CONN JUMPER 2.54MM 24POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BTSW-112-01-T-S |
|---|---|
| Color | Black |
| Contact Finish | Tin |
| Gender | Male Pins |
| Height [z] | 2.54 mm |
| Height [z] | 0.1 in |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions or Pins (Grid) | 12 |
| Number of Positions or Pins (Grid) [custom] | 1 x 12 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Type | Insulated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.33 | |
| 10 | $ 1.78 | |||
| 100 | $ 1.37 | |||
| 500 | $ 1.15 | |||
| 1000 | $ 1.07 | |||
| 5000 | $ 0.92 | |||
| 10000 | $ 0.88 | |||
Description
General part information
BTSW-112 Series
12 (1 x 12) Position Shunt Connector Black Insulated 0.100" (2.54mm) Tin
