CBA-TNCF-MCXM

Active

COAX CBL MCX TO TNC 7.8"

Active

COAX CBL MCX TO TNC 7.8"

Description

General part information

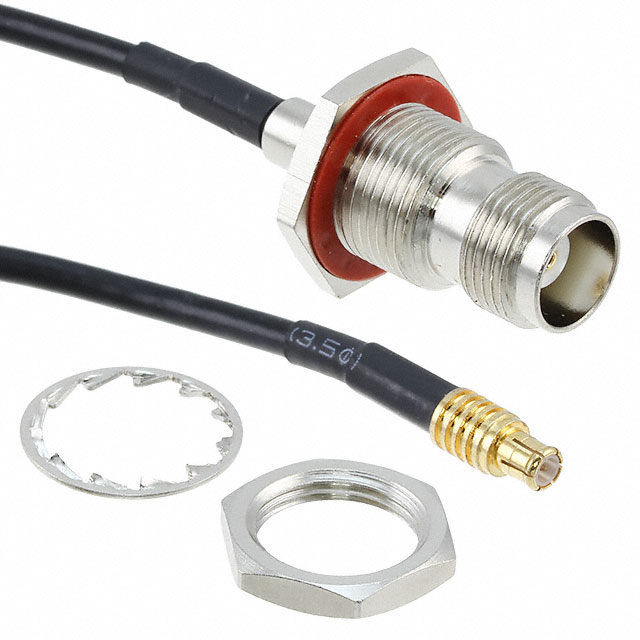

Cable Assembly Coaxial MCX to TNC RG-174 7.874" (200.00mm)

Parameters and characteristics for this part

Specification	CBA-TNCF-MCXM

1st Connector	MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG, 174
Color	Black
Length	7.874 in
Overall Impedance	50 Ohms
Style	MCX, TNC

Part	1st Connector	2nd Contact Gender	Length	2nd Connector	Style	2nd Connector Mounting Feature	1st Connector Mounting Type	Overall Impedance	Cable Impedance	1st Contact Gender	Cable Type	Color	2nd Connector Mounting Type
RF SOLUTIONS CBA-TNCF-MCXM	MCX Plug	Female	7.874 in	TNC Jack	MCX TNC	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms	50 Ohms	Male	174 RG	Black	Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
