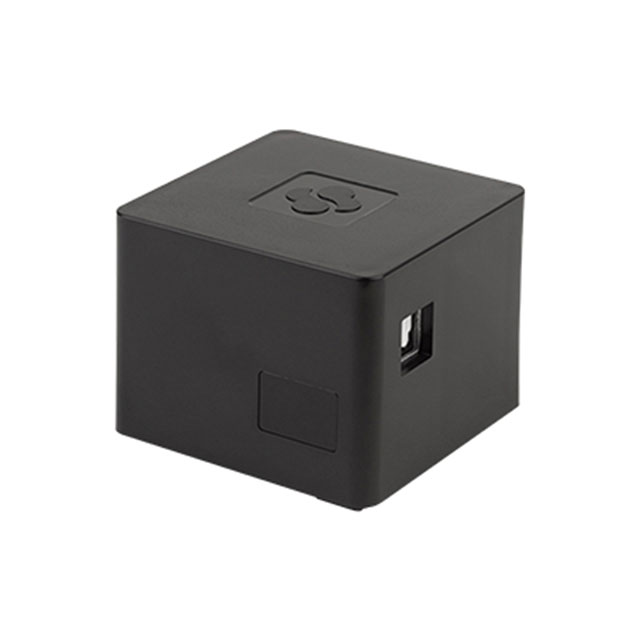

SRMX6DUW00D01GE008X00CE

Obsolete

SolidRun LTD

SBC 1.0GHZ 2 CORE 1GB/- RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet CuBox-i Block Diagram

SRMX6DUW00D01GE008X00CE

Obsolete

SolidRun LTD

SBC 1.0GHZ 2 CORE 1GB/- RAM

Deep-Dive with AI

DocumentsDatasheet CuBox-i Block Diagram

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRMX6DUW00D01GE008X00CE

Contents	SD Card
Core Processor	ARM Cortex-A9, i.MX6Dual
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Number of Cores	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
RAM Capacity/Installed	-
RAM Capacity/Installed	1 GB
Size / Dimension [x]	1.97 "
Size / Dimension [x]	50 mm
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Speed	1 GHz
Storage Interface	uSD, eSATA, eMMC
USB	USB 2.0 (2), USB Micro (1)
Video Outputs	SPDIF, HDMI
Watchdog Timer	False

SRMX6DUW00D01GE Series

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	RAM Capacity/Installed	RAM Capacity/Installed	Number of Cores	Video Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Storage Interface	USB	Core Processor	Contents	Speed	Ethernet	Form Factor	Expansion Site/Bus	Ethernet	Cooling Type	Digital I/O Lines
SolidRun LTD SRMX6DUW00D01GE008X00CE	1.97 "	50 mm	1.97 "	50 mm	-	1 GB	2	HDMI SPDIF	70 °C	0 °C	eMMC eSATA uSD	USB 2.0 (2) USB Micro (1)	ARM Cortex-A9 i.MX6Dual	SD Card	1 GHz	10 Mbps 100 Mbps 1000 Mbps
SolidRun LTD SRMX6DUW00D01GE128G01CE	3.937 in	100 mm	2.756 in	70 mm		0 GB 1 GB	2	HDMI MIPI-DSI	70 °C	0 °C	eMMC microSD	USB 2.0 (4)	ARM Cortex-A9		1 GHz	10 100 1000	SBC	GPIO MIPI CSI MIPI DSI mPCIe UART	RJ45
SolidRun LTD SRMX6DUW00D01GE000G01CH	3.937 in	100 mm	2.756 in	70 mm		0 GB 1 GB	2	HDMI MIPI-DSI	70 °C	0 °C	eMMC microSD	USB 2.0 (4)	ARM Cortex-A9		1 GHz	10 100 1000	SBC	GPIO MIPI CSI MIPI DSI mPCIe UART	RJ45	Heat Sink
SolidRun LTD SRMX6DUW00D01GE000E01CH	3.937 in	100 mm	2.756 in	70 mm		0 GB 1 GB	2	HDMI LVDS MIPI DSI	70 °C	0 °C	eMMC M.2 microSD	USB 2.0 (4)	ARM Cortex-A9		1 GHz	10 100 1000	SBC	GPIO LVDS M.2 MIPI CSI MIPI DSI mPCIe UART	RJ45	Heat Sink
SolidRun LTD SRMX6DUW00D01GE128E01IE	3.937 in	100 mm	2.756 in	70 mm		0 GB 1 GB	2	HDMI LVDS MIPI DSI	85 °C	-40 °C	eMMC M.2 microSD	USB 2.0 (4)	ARM Cortex-A9		1 GHz	10 100 1000	SBC	GPIO LVDS M.2 MIPI CSI MIPI DSI mPCIe UART	RJ45
SolidRun LTD SRMX6DUW00D01GE128E01CH	3.937 in	100 mm	2.756 in	70 mm		0 GB 1 GB	2	HDMI LVDS MIPI DSI	70 °C	0 °C	eMMC M.2 microSD	USB 2.0 (4)	ARM Cortex-A9		1 GHz	10 100 1000	SBC	GPIO LVDS M.2 MIPI CSI MIPI DSI mPCIe UART	RJ45	Heat Sink
SolidRun LTD SRMX6DUW00D01GE064G01CE	3.937 in	100 mm	2.756 in	70 mm		0 GB 1 GB	2	HDMI MIPI-DSI	70 °C	0 °C	eMMC microSD	USB 2.0 (4)	ARM Cortex-A9		1 GHz	10 100 1000	SBC	GPIO MIPI CSI MIPI DSI mPCIe UART	RJ45
SolidRun LTD SRMX6DUW00D01GE064E01CH	3.937 in	100 mm	2.756 in	70 mm		0 GB 1 GB	2	HDMI LVDS MIPI DSI	70 °C	0 °C	eMMC M.2 microSD	USB 2.0 (4)	ARM Cortex-A9		1 GHz	10 100 1000	SBC	GPIO LVDS M.2 MIPI CSI MIPI DSI mPCIe UART	RJ45	Heat Sink
SolidRun LTD SRMX6DUW00D01GE000V15C0	1.85 in	47 mm	1.18 in	30 mm	1GB/1GB		2	DSI HDMI LVDS	60 °C	0 °C		USB 2.0 (1) USB OTG (1)	ARM Cortex-A9 i.MX6Dual		1.2 GHz	10 Mbps 100 Mbps 1000 Mbps		PCIe SATA			75
SolidRun LTD SRMX6DUW00D01GE064E01CE	3.937 in	100 mm	2.756 in	70 mm		0 GB 1 GB	2	HDMI LVDS MIPI DSI	70 °C	0 °C	eMMC M.2 microSD	USB 2.0 (4)	ARM Cortex-A9		1 GHz	10 100 1000	SBC	GPIO LVDS M.2 MIPI CSI MIPI DSI mPCIe UART	RJ45

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SRMX6DUW00D01GE Series

Single Board Computer 1GHz 2 Core 1GB/- RAM ARM Cortex-A9, i.MX6Dual

Documents

Technical documentation and resources

Datasheet

CuBox-i Block Diagram

Datasheet
