M1BXK-6040K

Active

IDC CABLE - MSR60K/MC60F/X

Deep-Dive with AI

Search across all available documentation for this part.

Documents1700 Series Ribbon Cable Assembly Length Guide +1

M1BXK-6040K

Active

IDC CABLE - MSR60K/MC60F/X

Deep-Dive with AI

Documents1700 Series Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.15
		10	$ 31.05
		25	$ 28.16
		50	$ 26.20
		100	$ 24.44
		250	$ 22.36

Description

General part information

M1BXK Series

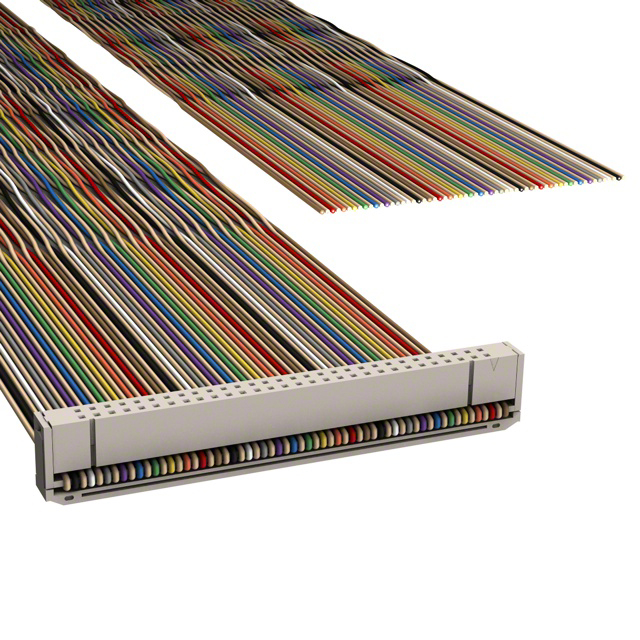

60 Position Cable Assembly Rectangular Socket to Cable 3.34' (1.02m)

Documents

Technical documentation and resources

1700 Series

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M1BXK-6040K	M1BXK Series

Cable Termination	IDC	IDC
Color	Multiple, Twisted Pair (Flat)	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Socket to Cable	Socket to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Strain Relief	Strain Relief
Length [x]	1.02 m	1.02 - 914.4 mm
Length [x]	3.34 ft	3 - 3.34 ft
Number of Positions	60	10 - 60
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M1BXK Series

IDC CABLE - MSR50K/MC50G/X

Part	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Cable Termination	Connector Type	Contact Finish	Number of Positions	Features	Shielding	Number of Rows	Length [x]	Length [x]	Color
3M M1BXK-5036J	0.05 "	1.27 mm	0.76 Ám	30 Áin	0.1 in	2.54 mm	IDC	Socket to Cable	Gold	50	Strain Relief	Unshielded	2	3 ft	914.4 mm
3M M1BXK-2636R	0.05 "	1.27 mm	0.76 Ám	30 Áin	0.1 in	2.54 mm	IDC	Socket to Cable	Gold	26	Strain Relief	Unshielded	2	3 ft	914.4 mm	Multiple, Ribbon
3M M1BXK-1036J	0.05 "	1.27 mm	0.76 Ám	30 Áin	0.1 in	2.54 mm	IDC	Socket to Cable	Gold	10	Strain Relief	Unshielded	2	3 ft	914.4 mm
3M M1BXK-4040K	0.05 "	1.27 mm	0.76 Ám	30 Áin	0.1 in	2.54 mm	IDC	Socket to Cable	Gold	40	Strain Relief	Unshielded	2	3.34 ft	1.02 m	Multiple, Twisted Pair (Flat)
3M M1BXK-2436J	0.05 "	1.27 mm	0.76 Ám	30 Áin	0.1 in	2.54 mm	IDC	Socket to Cable	Gold	24	Strain Relief	Unshielded	2	3 ft	914.4 mm
3M M1BXK-6040K	0.05 "	1.27 mm	0.76 Ám	30 Áin	0.1 in	2.54 mm	IDC	Socket to Cable	Gold	60	Strain Relief	Unshielded	2	3.34 ft	1.02 m	Multiple, Twisted Pair (Flat)
3M M1BXK-3036R	0.05 "	1.27 mm	0.76 Ám	30 Áin	0.1 in	2.54 mm	IDC	Socket to Cable	Gold	30	Strain Relief	Unshielded	2	3 ft	914.4 mm	Multiple, Ribbon
3M M1BXK-1436J	0.05 "	1.27 mm	0.76 Ám	30 Áin	0.1 in	2.54 mm	IDC	Socket to Cable	Gold	14	Strain Relief	Unshielded	2	3 ft	914.4 mm
3M M1BXK-4036R	0.05 "	1.27 mm	0.76 Ám	30 Áin	0.1 in	2.54 mm	IDC	Socket to Cable	Gold	40	Strain Relief	Unshielded	2	3 ft	914.4 mm	Multiple, Ribbon
3M M1BXK-1040K	0.05 "	1.27 mm	0.76 Ám	30 Áin	0.1 in	2.54 mm	IDC	Socket to Cable	Gold	10	Strain Relief	Unshielded	2	3.34 ft	1.02 m	Multiple, Twisted Pair (Flat)
