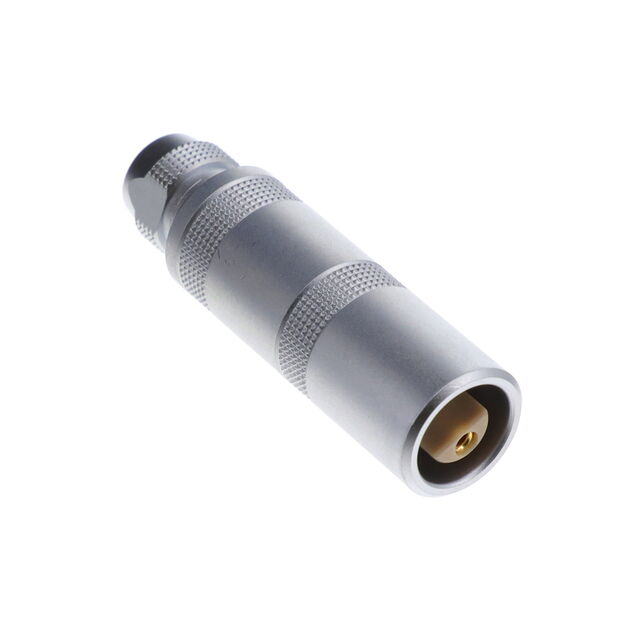

Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PCA.1S.302.CLLC52 | 1S Series |
|---|---|---|
| Backshell Material, Plating | Brass, Chrome | Brass, Chrome |
| Cable Opening | - | 0.165 - 0.244 in |
| Cable Opening | - | 0.126 - 0.224 in |
| Cable Opening | - | 6.2 mm |
| Cable Opening | - | 3.2 - 5.7 mm |
| Cable Opening | - | 1.4 - 2.2 mm |
| Cable Opening | - | 0.055 - 0.087 in |
| Cable Opening | - | 4.2 mm |
| Cable Opening [diameter] | 0.205 in, 0.165 in | 0.165 - 0.205 in |
| Cable Opening [diameter] | 4.2 mm | 4.2 mm |
| Cable Opening [diameter] | 5.2 mm | 5.2 mm |
| Color | Silver | Silver |
| Connector Type | Female Sockets, Male Pins, Receptacle | Male Pins, Plug, Female Sockets, Receptacle |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Bronze, Brass | Bronze, Brass |
| Current Rating (Amps) | 15 A | 4.5 - 18 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | - | Front and Rear Side Nut |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount |
| Number of Positions | 2 | 1 - 2 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass, Brass and Polyphenylene Sulfide (PPS) |
| Shell Size - Insert | 302 | 120 - 405 |
| Shielding | Shielded | Shielded |
| Termination | - | Solder |
1S Series
Circular Push Pull Connectors STRAIGHT PLUG CABLE COLLET
| Part | Ingress Protection | Color | Shell Material | Contact Material | Mounting Type | Orientation | Shell Size - Insert | Primary Material | Material Flammability Rating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Current Rating (Amps) | Insert Material | Shell Finish | Features | Connector Type | Contact Finish - Mating | Backshell Material, Plating | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Mounting Feature | Termination | Number of Positions | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IP50 | Silver | Brass | Brass, Bronze | Free Hanging (In-Line) | Keyed | 303 | Metal | UL94 V-0 | Push-Pull | -55 °C | 250 °C | Shielded | 10 A | Polyetheretherketone (PEEK) | Chrome | Backshell | Female Sockets, Male Pins, Plug | Gold | Brass, Chrome | 0.244 in | 0.224 in | 6.2 mm | 5.7 mm | ||||||||||
LEMO EXP.1S.303.HLN | IP50 | Brass and Polyphenylene Sulfide (PPS) | Brass, Bronze | Panel Mount, Right Angle, Through Hole | Keyed | 303 | Metal | UL94 V-0 | Push-Pull | -55 °C | 250 °C | Shielded | 4.5 A | Polyetheretherketone (PEEK) | Female Sockets, Male Pins, Receptacle | Gold | Front and Rear Side Nut | Solder | |||||||||||||||
IP50 | Silver | Brass | Brass, Bronze | Free Hanging (In-Line) | Keyed | 302 | Metal | UL94 V-0 | Push-Pull | -55 °C | 250 °C | Shielded | 15 A | Polyetheretherketone (PEEK) | Chrome | Backshell | Female Sockets, Male Pins, Plug | Gold | Brass, Chrome | 0.244 in | 0.224 in | 6.2 mm | 5.7 mm | 2 | |||||||||
IP50 | Silver | Brass | Brass, Bronze | Free Hanging (In-Line) | Keyed | 302 | Metal | UL94 V-0 | Push-Pull | -55 °C | 250 °C | Shielded | 15 A | Polyetheretherketone (PEEK) | Chrome | Backshell | Female Sockets, Male Pins, Receptacle | Gold | Brass, Chrome | 2 | 0.165 in, 0.205 in | 4.2 mm | 5.2 mm | ||||||||||
IP50 | Silver | Brass | Brass | Free Hanging (In-Line) | Keyed | 120 | Metal | Push-Pull | -55 °C | 250 °C | Shielded | 18 A | Polytetrafluoroethylene (PTFE) | Chrome | Backshell | Male Pins, Plug | Gold | Brass, Chrome | 1 | 1.4 mm, 2.2 mm | 0.055 in, 0.087 in | ||||||||||||
IP50 | Silver | Brass | Bronze | Free Hanging (In-Line) | Keyed | 405 | Metal | Push-Pull | -55 °C | 250 °C | Shielded | 8 A | Polytetrafluoroethylene (PTFE) | Chrome | Backshell | Female Sockets, Plug | Gold | Brass, Chrome | 0.165 in | 0.126 in | 3.2 mm | 1 | 4.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1S Series
Circular Push Pull Connectors STRAIGHT PLUG CABLE COLLET
