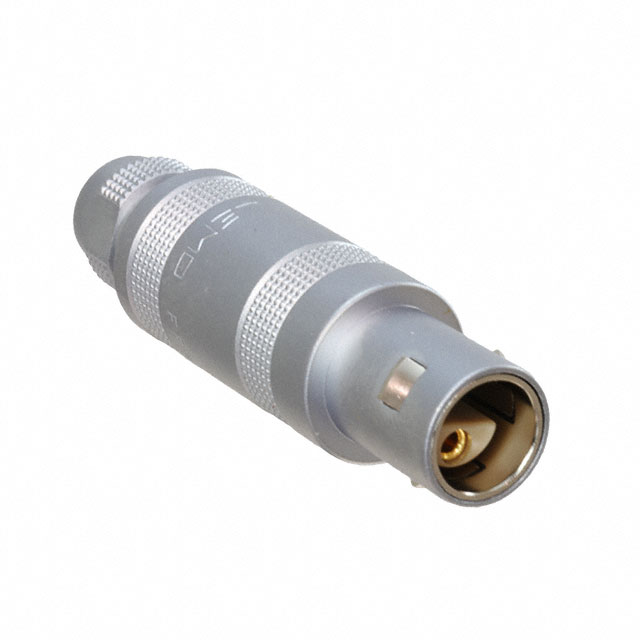

Circular Push Pull Connectors STRAIGHT PLUG CABLE COLLET
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | FFA.1S.302.CLAC62 | 1S Series |
|---|---|---|
| Backshell Material, Plating | Brass, Chrome | Brass, Chrome |
| Cable Opening | - | 0.165 - 0.205 in |
| Cable Opening | - | 4.2 mm |
| Cable Opening | - | 5.2 mm |
| Cable Opening | - | 1.4 - 2.2 mm |
| Cable Opening | - | 0.055 - 0.087 in |
| Cable Opening | - | 4.2 mm |
| Cable Opening [Max] [custom] | 0.244 in | 0.165 - 0.244 in |
| Cable Opening [Max] [custom] | 6.2 mm | 6.2 mm |
| Cable Opening [Min] [custom] | 0.224 in | 0.126 - 0.224 in |
| Cable Opening [Min] [custom] | 5.7 mm | 3.2 - 5.7 mm |
| Color | Silver | Silver |
| Connector Type | Male Pins, Plug, Female Sockets | Male Pins, Plug, Female Sockets, Receptacle |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Bronze, Brass | Bronze, Brass |
| Current Rating (Amps) | 15 A | 4.5 - 18 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | - | Front and Rear Side Nut |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount |
| Number of Positions | 2 | 1 - 2 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass, Brass and Polyphenylene Sulfide (PPS) |
| Shell Size - Insert | 302 | 120 - 405 |
| Shielding | Shielded | Shielded |
| Termination | - | Solder |
Circular Push Pull Connectors STRAIGHT PLUG CABLE COLLET
| Part | Ingress Protection | Color | Shell Material | Contact Material | Mounting Type | Orientation | Shell Size - Insert | Primary Material | Material Flammability Rating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Current Rating (Amps) | Insert Material | Shell Finish | Features | Connector Type | Contact Finish - Mating | Backshell Material, Plating | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Mounting Feature | Termination | Number of Positions | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IP50 | Silver | Brass | Brass, Bronze | Free Hanging (In-Line) | Keyed | 303 | Metal | UL94 V-0 | Push-Pull | -55 °C | 250 °C | Shielded | 10 A | Polyetheretherketone (PEEK) | Chrome | Backshell | Female Sockets, Male Pins, Plug | Gold | Brass, Chrome | 0.244 in | 0.224 in | 6.2 mm | 5.7 mm | ||||||||||
LEMO EXP.1S.303.HLN | IP50 | Brass and Polyphenylene Sulfide (PPS) | Brass, Bronze | Panel Mount, Right Angle, Through Hole | Keyed | 303 | Metal | UL94 V-0 | Push-Pull | -55 °C | 250 °C | Shielded | 4.5 A | Polyetheretherketone (PEEK) | Female Sockets, Male Pins, Receptacle | Gold | Front and Rear Side Nut | Solder | |||||||||||||||
IP50 | Silver | Brass | Brass, Bronze | Free Hanging (In-Line) | Keyed | 302 | Metal | UL94 V-0 | Push-Pull | -55 °C | 250 °C | Shielded | 15 A | Polyetheretherketone (PEEK) | Chrome | Backshell | Female Sockets, Male Pins, Plug | Gold | Brass, Chrome | 0.244 in | 0.224 in | 6.2 mm | 5.7 mm | 2 | |||||||||
IP50 | Silver | Brass | Brass, Bronze | Free Hanging (In-Line) | Keyed | 302 | Metal | UL94 V-0 | Push-Pull | -55 °C | 250 °C | Shielded | 15 A | Polyetheretherketone (PEEK) | Chrome | Backshell | Female Sockets, Male Pins, Receptacle | Gold | Brass, Chrome | 2 | 0.165 in, 0.205 in | 4.2 mm | 5.2 mm | ||||||||||
IP50 | Silver | Brass | Brass | Free Hanging (In-Line) | Keyed | 120 | Metal | Push-Pull | -55 °C | 250 °C | Shielded | 18 A | Polytetrafluoroethylene (PTFE) | Chrome | Backshell | Male Pins, Plug | Gold | Brass, Chrome | 1 | 1.4 mm, 2.2 mm | 0.055 in, 0.087 in | ||||||||||||
IP50 | Silver | Brass | Bronze | Free Hanging (In-Line) | Keyed | 405 | Metal | Push-Pull | -55 °C | 250 °C | Shielded | 8 A | Polytetrafluoroethylene (PTFE) | Chrome | Backshell | Female Sockets, Plug | Gold | Brass, Chrome | 0.165 in | 0.126 in | 3.2 mm | 1 | 4.2 mm |
