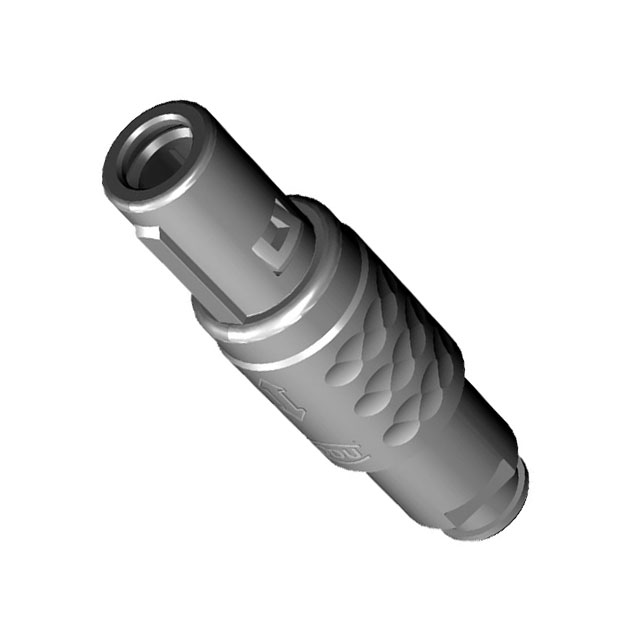

S21M07-P10MCC0-657S

Active

ODU

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsODU MEDI-SNAP® Catalog Datasheet +1

S21M07-P10MCC0-657S

Active

ODU

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

DocumentsODU MEDI-SNAP® Catalog Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S21M07-P10MCC0-657S

Applications	Testing Equipment, Medical, Industrial, Measurement
Backshell Material, Plating	Polysulfone (PSU)
Cable Opening [custom]	0.209 in, 0.256 in
Cable Opening [custom]	6.5 mm, 5.3 mm
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	2.75 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	0
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded

S21M07-P Series

Part	Number of Positions	Mounting Type	Shell Material	Connector Type	Insert Material	Primary Material	Shell Size - Insert	Backshell Material, Plating	Applications	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish - Mating	Color	Ingress Protection	Features	Current Rating (Amps)	Cable Opening [custom]	Cable Opening [custom]	Fastening Type	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Voltage Rating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Material Flammability Rating	Termination
ODU S21M07-P10MCC0-657S	10	Free Hanging (In-Line)	Polysulfone (PSU)	Male Pins Plug	Polyetheretherketone (PEEK)	Plastic	1	Polysulfone (PSU)	Industrial Measurement Medical Testing Equipment	Unshielded	-50 °C	120 °C	Brass	Gold	Gray	IP50	Backshell Strain Relief	2.75 A	0.209 in 0.256 in	5.3 mm 6.5 mm	Push-Pull
ODU S21M07-P07MFG0-527S	7	Free Hanging (In-Line)	Polysulfone (PSU)	Male Pins Plug	Polyetheretherketone (PEEK)	Plastic	1	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	Unshielded	-50 °C	120 °C	Brass	Gold	Gray	IP50	Backshell Strain Relief	4.55 A			Push-Pull	0.157 in	0.205 in	4 mm	5.2 mm
ODU S21M07-P07MFD0-657S	7	Free Hanging (In-Line)	Polysulfone (PSU)	Male Pins Plug	Polyetheretherketone (PEEK)	Plastic	1	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	Unshielded	-50 °C	120 °C	Brass	Gold	Gray	IP50	Backshell Strain Relief	4.55 A	0.209 in 0.256 in	5.3 mm 6.5 mm	Push-Pull
ODU S21M07-P02MPN0-397S	2	Free Hanging (In-Line)	Polysulfone (PSU)	Male Pins Plug	Polyetheretherketone (PEEK)	Plastic	1	Polysulfone (PSU)	Industrial Measurement Medical Testing Equipment	Unshielded	-50 °C	120 °C	Brass	Gold	Gray	IP50	Backshell Strain Relief	15 A			Push-Pull					38 V	2.7 mm	0.154 in	3.9 mm	0.106 in	UL94 V-0
ODU S21M07-P03LJN0-657S		Free Hanging (In-Line)	Polysulfone (PSU)	Male Pins Plug	Polyetheretherketone (PEEK)	Plastic	1	Polysulfone (PSU)	Industrial Measurement Medical Testing Equipment	Unshielded	-50 °C	120 °C	Brass	Gold	Gray	IP50	Backshell Strain Relief	10 A	0.209 in 0.256 in	5.3 mm 6.5 mm	Push-Pull					230 V					UL94 V-0
ODU S21M07-P14MCC0-527S	14	Free Hanging (In-Line)	Polysulfone (PSU)	Male Pins Plug	Polyetheretherketone (PEEK)	Plastic	1	Polysulfone (PSU)	Industrial Measurement Medical Testing Equipment	Unshielded	-50 °C	120 °C	Brass	Gold	Gray	IP50	Backshell Strain Relief	2.5 A			Push-Pull	0.157 in	0.205 in	4 mm	5.2 mm
ODU S21M07-P06MFG0-527S	6	Free Hanging (In-Line)	Polysulfone (PSU)	Male Pins Plug	Polyetheretherketone (PEEK)	Plastic	1	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	Unshielded	-50 °C	120 °C	Brass	Gold	Gray	IP50	Backshell Strain Relief	4.55 A			Push-Pull	0.157 in	0.205 in	4 mm	5.2 mm
ODU S21M07-P04PJH0-527S	4	Free Hanging (In-Line)	Polysulfone (PSU)	Male Pins Plug	Polyetheretherketone (PEEK)	Plastic	1	Polysulfone (PSU)	Industrial Measurement Medical Testing Equipment	Unshielded	-50 °C	120 °C	Brass	Gold	Gray	IP50	Backshell Strain Relief	10 A			Push-Pull	0.157 in	0.205 in	4 mm	5.2 mm	37 V					UL94 V-0	Crimp
ODU S21M07-P06MFG0-397S	6	Free Hanging (In-Line)	Polysulfone (PSU)	Male Pins Plug	Polyetheretherketone (PEEK)	Plastic	1	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	Unshielded	-50 °C	120 °C	Brass	Gold	Gray	IP50	Backshell Strain Relief	4.55 A			Push-Pull						2.7 mm	0.154 in	3.9 mm	0.106 in
ODU S21M07-P04MJG0-657S	4	Free Hanging (In-Line)	Polysulfone (PSU)	Male Pins Plug	Polyetheretherketone (PEEK)	Plastic	1	Polysulfone (PSU)	Industrial Measurement Medical Testing Equipment	Unshielded	-50 °C	120 °C	Brass	Gold	Gray	IP50	Backshell Strain Relief	10 A	0.209 in 0.256 in	5.3 mm 6.5 mm	Push-Pull

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.23
		10	$ 16.40

Description

General part information

S21M07-P Series

10 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

ODU MEDI-SNAP® Catalog

Datasheet

ODU MEDI-SNAP Assembly Instruction GB

Datasheet
