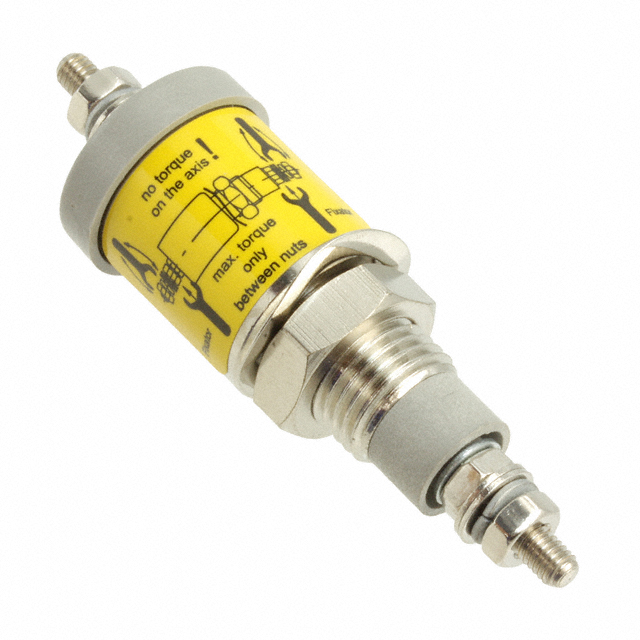

FN7510-10-M3

Active

TE Connectivity Raychem Cable Protection

CAP FEEDTHRU 2200PF 1KV AXIAL

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CAP FEEDTHRU 2200PF 1KV AXIAL

Technical Specifications

Parameters and characteristics for this part

Part	Capacitance	Current	DC Resistance (DCR) (Max)	Voltage - Rated	Voltage - Rated	Package / Case	Tolerance	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Ratings	Size / Dimension [z]	Size / Dimension [z]
TE Connectivity Raychem Cable Protection FN7510-32-M4	4700 pF	32 A	0.52 mOhm	1 kV	1000 V	Axial - Threaded Terminals	20 %	21.95 mm	2.48 "	0.864 in	63 mm	100 °C	-40 °C	M12x2	Y2
TE Connectivity Raychem Cable Protection FN7510-10-M3	2200 pF	10 A	0.8 mOhm	1 kV	1000 V	Axial - Threaded Terminals	20 %	16.85 mm		0.663 in		100 °C	-40 °C	M10x1	Y2	2.244 "	57 mm
TE Connectivity Raychem Cable Protection FN7510-100-M8		100 A	0.23 mOhm	1 kV	1000 V	Axial - Threaded Terminals	20 %	32 mm	4.449 "	1.26 "	113 mm	100 °C	-40 °C	M20x1	Y2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2200 pF Feed Through Capacitor 1000V (1kV) 10 A 0.8mOhm (Typ) Axial - Threaded Terminals
