305-084-521-202
ActiveEDAC Inc.

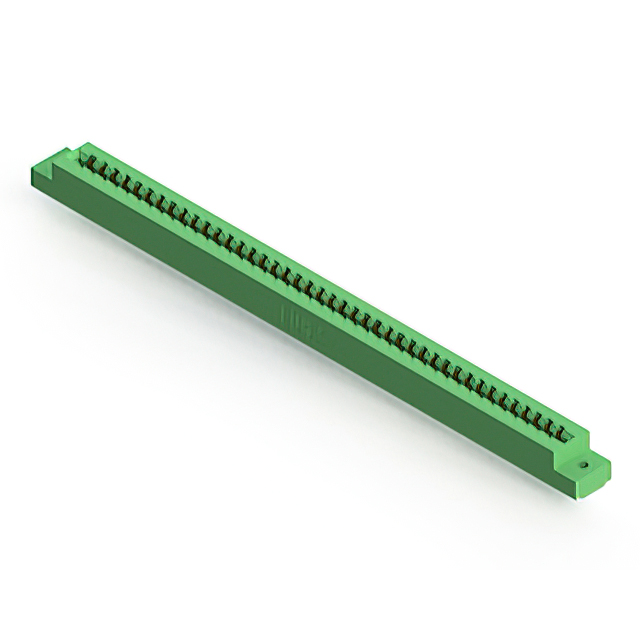

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 84 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
305-084-521-202
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 84 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 305-084-521-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 84 |
| Number of Positions/Bay/Row [custom] | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
305-084 Series
| Part | Material - Insulation | Mounting Type | Read Out | Number of Positions | Termination | Gender | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Color | Contact Type | Card Type | Termination Rows | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | Panel Mount Through Hole | Dual | 84 | Solder | Female | 42 | 0.156 in | 3.96 mm | Green | Semi Bellows | Non Specified - Dual Edge | 2 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | |
EDAC Inc. | Polyester Thermoplastic | Board Edge Straddle Mount | Dual | 84 | Solder | Female | 42 | 0.156 in | 3.96 mm | Green | Semi Bellows | Non Specified - Dual Edge | 2 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | |||
EDAC Inc. | Polyester Thermoplastic | Through Hole | Dual | 84 | Solder | Female | 42 | 0.156 in | 3.96 mm | Green | Semi Bellows | Non Specified - Dual Edge | 2 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | ||||
EDAC Inc. | Polyester Thermoplastic | Panel Mount Through Hole | Dual | 84 | Solder | Female | 42 | 0.156 in | 3.96 mm | Green | Semi Bellows | Non Specified - Dual Edge | 2 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | |||
EDAC Inc. | Polyester Thermoplastic | Board Edge Straddle Mount | Dual | 84 | Solder | Female | 42 | 0.156 in | 3.96 mm | Green | Semi Bellows | Non Specified - Dual Edge | 2 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Card Extender | |||
EDAC Inc. | Polyester Thermoplastic | Board Edge Straddle Mount | Dual | 84 | Solder | Female | 42 | 0.156 in | 3.96 mm | Green | Semi Bellows | Non Specified - Dual Edge | 2 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | |||
EDAC Inc. | Polyester Thermoplastic | Board Edge Straddle Mount | Dual | 84 | Solder | Female | 42 | 0.156 in | 3.96 mm | Green | Semi Bellows | Non Specified - Dual Edge | 2 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | |||
EDAC Inc. | Polyester Thermoplastic | Board Edge Straddle Mount | Dual | 84 | Solder | Female | 42 | 0.156 in | 3.96 mm | Green | Semi Bellows | Non Specified - Dual Edge | 2 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | |||
EDAC Inc. | Polyester Thermoplastic | Dual | 84 | Solder Eyelet(s) | Female | 42 | 0.156 in | 3.96 mm | Green | Semi Bellows | Non Specified - Dual Edge | 2 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | ||
EDAC Inc. | Polyester Thermoplastic | Panel Mount Through Hole | Dual | 84 | Solder | Female | 42 | 0.156 in | 3.96 mm | Green | Semi Bellows | Non Specified - Dual Edge | 2 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 2 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
305-084 Series
84 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
