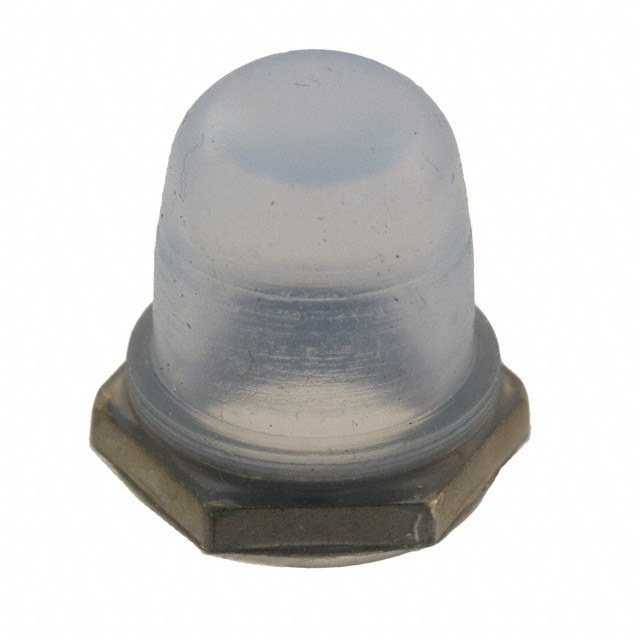

NC3030 4

Active

APM HEXSEAL

PUSHBUTTON FULL BOOT CLEAR

Search across all available documentation for this part.

Active

APM HEXSEAL

PUSHBUTTON FULL BOOT CLEAR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PUSHBUTTON FULL BOOT CLEAR

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	NC3030 4	NC3030 Series

Actuator Diameter [diameter]	0.422 in	0.422 in
Actuator Diameter [diameter]	10.72 mm	10.72 mm
Color	Clear	Gray, Clear
Features	-	Shielded
For Use With/Related Products	Multiple Series	Multiple Series
Ingress Protection	IP66/IP68	IP66/IP68
Material	Silicone Rubber	Silicone Rubber
Mounting Feature	Front of Panel	Front of Panel
Operating Temperature [Max]	204 °C	204 °C
Operating Temperature [Min]	-70 °C	-70 °C
Size / Dimension	-	18.65 mm
Size / Dimension [z]	0.719 in	0.719 - 0.733 in
Size / Dimension [z]	18.26 mm	0.734 - 18.64 mm
Thread Size	15/32-32 NS-2B	15/32-32 NS-2B, 1/2-32 NS-2B, 7/16-28 UNEF-2B, M12x1
Type	Pushbutton, Full Boot	Pushbutton, Full Boot

PUSHBUTTON FULL BOOT GRAY

Part	Material	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [z]	Color	Type	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Ingress Protection	For Use With/Related Products	Mounting Feature	Thread Size	Size / Dimension [z]	Features
APM HEXSEAL NC3030 2	Silicone Rubber	204 °C	-70 °C	0.719 in	18.26 mm	Gray	Pushbutton, Full Boot	0.422 in	10.72 mm	IP66/IP68	Multiple Series	Front of Panel	15/32-32 NS-2B
APM HEXSEAL NC3030H 2	Silicone Rubber	204 °C	-70 °C		0.734 in	Gray	Pushbutton, Full Boot	0.422 in	10.72 mm	IP66/IP68	Multiple Series	Front of Panel	1/2-32 NS-2B	18.65 mm
APM HEXSEAL NC3030 4	Silicone Rubber	204 °C	-70 °C	0.719 in	18.26 mm	Clear	Pushbutton, Full Boot	0.422 in	10.72 mm	IP66/IP68	Multiple Series	Front of Panel	15/32-32 NS-2B
APM HEXSEAL NC3030 7/16-284	Silicone Rubber	204 °C	-70 °C	0.719 in	18.26 mm	Clear	Pushbutton, Full Boot	0.422 in	10.72 mm	IP66/IP68	Multiple Series	Front of Panel	7/16-28 UNEF-2B
APM HEXSEAL NC3030H M12-1 2	Silicone Rubber	204 °C	-70 °C	0.733 in	18.64 mm	Gray	Pushbutton, Full Boot	0.422 in	10.72 mm	IP66/IP68	Multiple Series	Front of Panel	M12x1
APM HEXSEAL NC3030 RFI 2	Silicone Rubber	204 °C	-70 °C	0.719 in	18.26 mm	Gray	Pushbutton, Full Boot	0.422 in	10.72 mm	IP66/IP68	Multiple Series	Front of Panel	15/32-32 NS-2B		Shielded
