Q-2I04G0003018i

Active

Amphenol Custom Cable

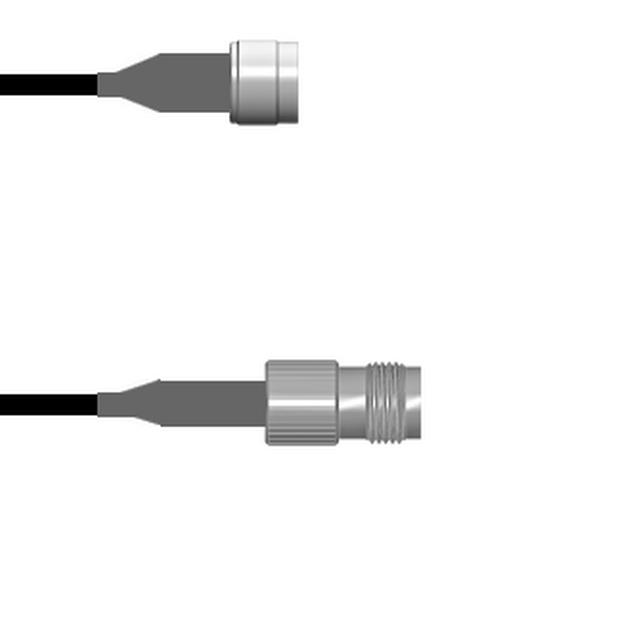

CBL ASSY NTYPE-TNC PLUG-JACK 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I04G0003018i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC PLUG-JACK 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I04G0003018i

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms

Q-2I04G0 Series

Part	Length [x]	Length [x]	Overall Impedance	1st Connector Mounting Type	2nd Connector	Color	Features	Frequency - Max [Max]	Cable Type	2nd Contact Gender	1st Contact Gender	2nd Connector Mounting Type	Length	Length	Length
Amphenol Custom Cable Q-2I04G0003018i	457.2 mm	457.2 mm	50 Ohms	Free Hanging (In-Line)	TNC Jack	Black	Shielded	11 GHz	RG-174	Female	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I04G0003072i			50 Ohms	Free Hanging (In-Line)	TNC Jack	Black	Shielded	11 GHz	RG-174	Female	Male	Free Hanging (In-Line)	6 ft	72 in	1.8 m
Amphenol Custom Cable Q-2I04G00050.5M			50 Ohms	Free Hanging (In-Line)	TNC Jack	Copper	Shielded	11 GHz	RG-316	Female	Male	Free Hanging (In-Line)		19.69 "	50 cm
Amphenol Custom Cable Q-2I04G0003006i			50 Ohms	Free Hanging (In-Line)	TNC Jack	Black	Shielded	11 GHz	RG-174	Female	Male	Free Hanging (In-Line)		6 in	152.4 mm
Amphenol Custom Cable Q-2I04G0005108i			50 Ohms	Free Hanging (In-Line)	TNC Jack	Copper	Shielded	11 GHz	RG-316	Female	Male	Free Hanging (In-Line)	9 ft	108 in	2.7 m
Amphenol Custom Cable Q-2I04G00030.5M			50 Ohms	Free Hanging (In-Line)	TNC Jack	Black	Shielded	11 GHz	RG-174	Female	Male	Free Hanging (In-Line)		19.69 "	50 cm
Amphenol Custom Cable Q-2I04G0005018i	457.2 mm	457.2 mm	50 Ohms	Free Hanging (In-Line)	TNC Jack	Copper	Shielded	11 GHz	RG-316	Female	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I04G0003024i			50 Ohms	Free Hanging (In-Line)	TNC Jack	Black	Shielded	11 GHz	RG-174	Female	Male	Free Hanging (In-Line)		24 "	609.6 mm
Amphenol Custom Cable Q-2I04G0003003i			50 Ohms	Free Hanging (In-Line)	TNC Jack	Black	Shielded	11 GHz	RG-174	Female	Male	Free Hanging (In-Line)		3 in	76.2 mm
Amphenol Custom Cable Q-2I04G0005002M			50 Ohms	Free Hanging (In-Line)	TNC Jack	Copper	Shielded	11 GHz	RG-316	Female	Male	Free Hanging (In-Line)	6.6 ft	78.7 in	2 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 79.22
		25	$ 77.68
		50	$ 76.14
		100	$ 74.60
		250	$ 73.06

Description

General part information

Q-2I04G0 Series

Cable Assembly Coaxial N-Type to TNC RG-174 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
