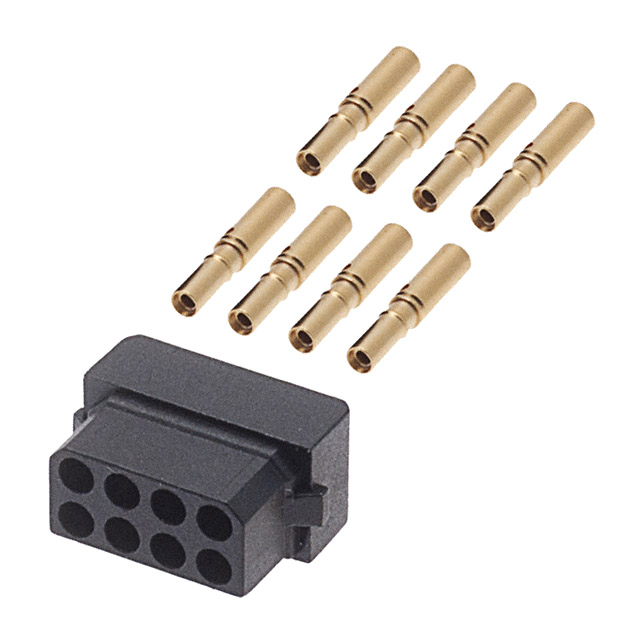

M80-7880805

Active

Harwin Inc.

CONNECTOR, RCPT, 8POS, 2ROW, 2MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001 M80, M83 Series Spec Sheet +2

M80-7880805

Active

Harwin Inc.

CONNECTOR, RCPT, 8POS, 2ROW, 2MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80-001 M80, M83 Series Spec Sheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-7880805

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Fastening Type	Locking Ramp
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge [Max]	32 AWG
Wire Gauge [Min]	27.5 AWG
Wire Type	Discrete

M80-788 Series

Part	Cable Termination	Color	Wire Gauge [Max]	Wire Gauge [Min]	Fastening Type	Number of Rows	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Row Spacing	Row Spacing	Connector Type	Pitch [x]	Pitch [x]	Wire Type	Number of Positions	Contact Type	Mounting Type
Harwin Inc. M80-7882605	Crimp	Black	32 AWG	27.5 AWG	Locking Ramp	2	Gold	0.3 Ám	11.8 Áin	2 mm	0.079 in	Receptacle	0.079 in	2 mm	Discrete	26	Female Socket	Free Hanging (In-Line)
Harwin Inc. M80-7881405	Crimp	Black	32 AWG	27.5 AWG	Locking Ramp	2	Gold	0.3 Ám	11.8 Áin	2 mm	0.079 in	Receptacle	0.079 in	2 mm	Discrete	14	Female Socket	Free Hanging (In-Line)
Harwin Inc. M80-7880605	Crimp	Black	32 AWG	27.5 AWG	Locking Ramp	2	Gold	0.3 Ám	11.8 Áin	2 mm	0.079 in	Receptacle	0.079 in	2 mm	Discrete	6	Female Socket	Free Hanging (In-Line)
Harwin Inc. M80-7882001	Crimp	Black	32 AWG	27.5 AWG	Locking Ramp	2	Gold	0.3 Ám	11.8 Áin	2 mm	0.079 in	Receptacle	0.079 in	2 mm	Discrete	20	Female Socket	Free Hanging (In-Line)
Harwin Inc. M80-7880801	Crimp	Black	32 AWG	27.5 AWG	Locking Ramp	2	Gold	0.3 Ám	11.8 Áin	2 mm	0.079 in	Receptacle	0.079 in	2 mm	Discrete	8	Female Socket	Free Hanging (In-Line)
Harwin Inc. M80-7881801	Crimp	Black	32 AWG	27.5 AWG	Locking Ramp	2	Gold	0.3 Ám	11.8 Áin	2 mm	0.079 in	Receptacle	0.079 in	2 mm	Discrete	18	Female Socket	Free Hanging (In-Line)
Harwin Inc. M80-7880805	Crimp	Black	32 AWG	27.5 AWG	Locking Ramp	2	Gold	0.3 Ám	11.8 Áin	2 mm	0.079 in	Receptacle	0.079 in	2 mm	Discrete	8	Female Socket	Free Hanging (In-Line)
Harwin Inc. M80-7881401	Crimp	Black	32 AWG	27.5 AWG	Locking Ramp	2	Gold	0.3 Ám	11.8 Áin	2 mm	0.079 in	Receptacle	0.079 in	2 mm	Discrete	14	Female Socket	Free Hanging (In-Line)
Harwin Inc. M80-7883405	Crimp	Black	32 AWG	27.5 AWG	Locking Ramp	2	Gold	0.3 Ám	11.8 Áin	2 mm	0.079 in	Receptacle	0.079 in	2 mm	Discrete	34	Female Socket	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.07
		10	$ 6.39
		25	$ 6.04
		50	$ 5.89
		100	$ 5.60
		250	$ 5.01
		500	$ 4.71
		1000	$ 4.12
		2500	$ 3.92
Newark	Each	1	$ 6.48
		10	$ 5.50
		25	$ 5.16
		50	$ 4.91
		100	$ 4.68
		250	$ 4.38
		500	$ 4.18
		1000	$ 3.98

Description

General part information

M80-788 Series

8 Position Rectangular Receptacle Connector Crimp Gold 28-32 AWG

Documents

Technical documentation and resources

M80-001

M80, M83 Series Spec Sheet

Datasheet

M80-7880805
