1450/16 BK001

Active

ALPHA WIRE

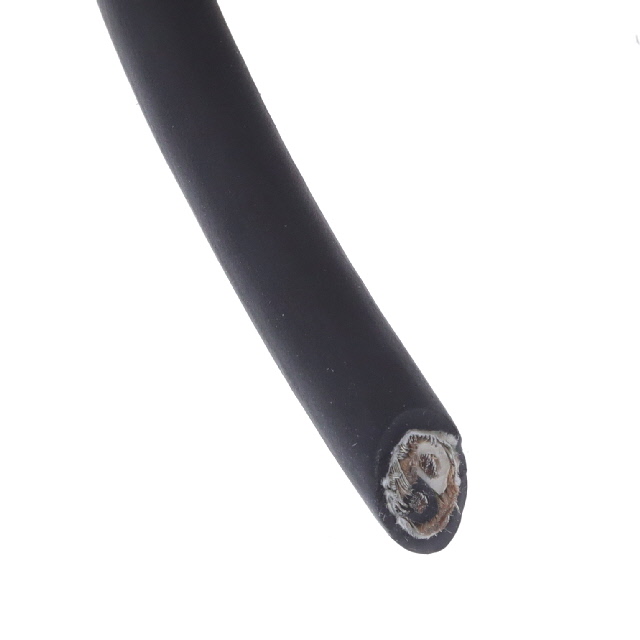

CABLE 2COND 16AWG BLK SHLD 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 16AWG BLK SHLD 1000'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1450/16 BK001	1450/16 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	34 AWG	34 AWG
Conductor Strand [custom]	65	65
Jacket (Insulation) Diameter [diameter]	8.31 mm	8.31 mm
Jacket (Insulation) Diameter [diameter]	0.327 in	0.327 in
Jacket (Insulation) Material	Polychloroprene	Polychloroprene
Jacket (Insulation) Thickness	0.914 mm	0.914 mm
Jacket (Insulation) Thickness	0.036 in	0.036 in
Jacket Color	Black	Black
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 - 152.4 m
Length	-	100 - 500 ft
Number of Conductors	2	2
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	85 %	85 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Braid	Braid
Usage	Control, Communication	Control, Communication
Voltage	600 V	600 V
Wire Gauge	16 AWG	16 AWG

CABLE 2COND 16AWG BLK SHLD 1000'

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Number of Conductors	Shield Type	Usage	Voltage	Wire Gauge	Jacket Color	Conductor Insulation	Jacket (Insulation) Material	Conductor Material	Cable Type	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]
ALPHA WIRE 1450/16 BK001	0.914 mm	0.036 in	Copper, Tinned	2	Braid	Communication, Control	600 V	16 AWG	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	Polychloroprene	Copper, Tinned	Multi-Conductor	85 %	34 AWG	65	1000 ft	304.8 m	8.31 mm	0.327 in	-20 C	60 °C
ALPHA WIRE 1450/16 BK005	0.914 mm	0.036 in	Copper, Tinned	2	Braid	Communication, Control	600 V	16 AWG	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	Polychloroprene	Copper, Tinned	Multi-Conductor	85 %	34 AWG	65			8.31 mm	0.327 in	-20 C	60 °C	30.5 m	100 ft
ALPHA WIRE 1450/16 BK002	0.914 mm	0.036 in	Copper, Tinned	2	Braid	Communication, Control	600 V	16 AWG	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	Polychloroprene	Copper, Tinned	Multi-Conductor	85 %	34 AWG	65			8.31 mm	0.327 in	-20 C	60 °C	152.4 m	500 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 5016.19

General part information

2 Conductor Multi-Conductor Cable Black 16 AWG Braid 1000.0' (304.8m)
