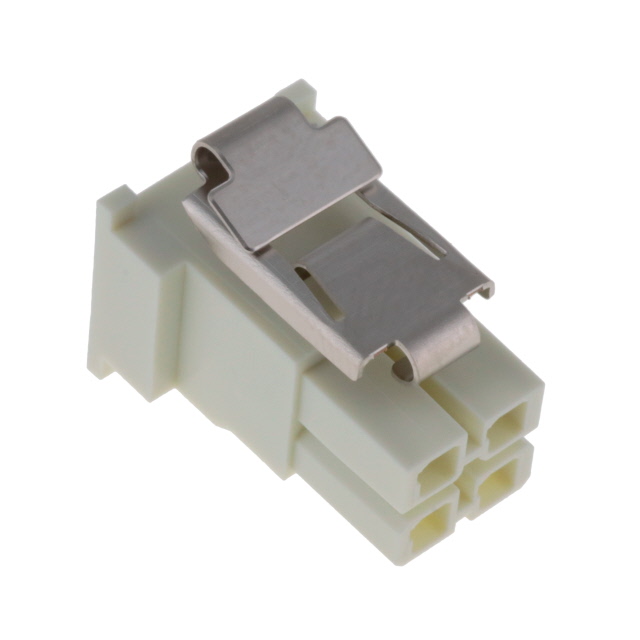

IPBD-02-D-K-M

Active

Samtec Inc.

CONN HOUSING PL 4 POS 4.19MM CRIMP ST CABLE MOUNT BULK

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HOUSING PL 4 POS 4.19MM CRIMP ST CABLE MOUNT BULK

Technical Specifications

Parameters and characteristics for this part

Specification	IPBD-02-D-K-M

Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Pick and Place, Polarizing Key
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	2
Pitch [x]	4.2 mm
Pitch [x]	0.165 in
Row Spacing	4.2 mm
Row Spacing	0.165 in

Part	Mounting Type	Number of Rows	Features	Insulation Material	Note	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Fastening Type	Contact Termination	Number of Positions	Connector Type	Contact Type
Samtec Inc. IPBD-02-D-K-M	Free Hanging (In-Line)	2	Pick and Place Polarizing Key	Nylon Polyamide (PA)	Contacts Not Included	4.2 mm	0.165 in	4.2 mm	0.165 in	Latch Lock	Crimp	4	Receptacle	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Receptacle 0.165" (4.20mm)
