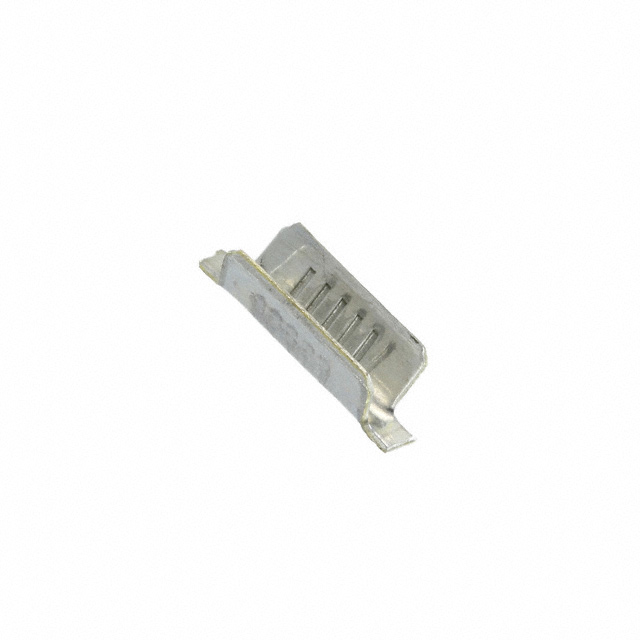

926823-4

Active

TE Connectivity AMP Connectors

CONN SPLICE 17-20 AWG CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SPLICE 17-20 AWG CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Crimpband, Open Band Connector Crimp 17-20 AWG

Technical documentation and resources

Specification	926823-4	926823 Series

Contact Material	-	Brass
Insulation	Non-Insulated	Non-Insulated
Length - Overall	-	7.01 mm
Length - Overall	-	0.276 in
Number of Wire Entries	Varies by Wire Size	Varies by Wire Size
Terminal Type	Open Band, Crimpband	Through Board, Open Band, Crimpband
Termination	Crimp	Crimp
Wire Gauge [Max]	20 AWG	20 AWG
Wire Gauge [Min]	17 AWG	17 AWG

Part	Terminal Type	Length - Overall [x]	Length - Overall [x]	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Number of Wire Entries	Termination	Insulation
TE Connectivity AMP Connectors 926823-1	Through Board	7.01 mm	0.276 in	Brass	17 AWG	20 AWG
TE Connectivity AMP Connectors 926823-2	Crimpband, Open Band				17 AWG	20 AWG	Varies by Wire Size	Crimp	Non-Insulated
TE Connectivity AMP Connectors 926823-4	Crimpband, Open Band				17 AWG	20 AWG	Varies by Wire Size	Crimp	Non-Insulated
