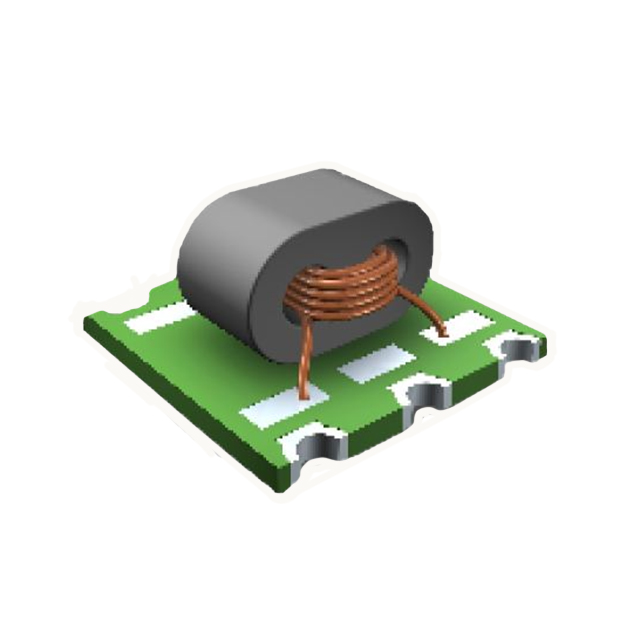

MABA-010321-CT1A42
ActiveMACOM Technology Solutions
TRANSFORMER 1:1 TXLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MABA-010321-CT1A42
ActiveMACOM Technology Solutions
TRANSFORMER 1:1 TXLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MABA-010321-CT1A42 |
|---|---|
| Frequency Range [Max] | 1.2 GHz |
| Frequency Range [Min] | 50 MHz |
| Impedance - Unbalanced/Balanced | 1:1 |
| Insertion Loss (Max) [Max] | 1.65 dB |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD (5 Leads), Flat Lead |
| Phase Difference | 6.7 ° |
| Return Loss (Min) [Min] | 8 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.13 | |
| 10 | $ 2.54 | |||
| 25 | $ 2.05 | |||
| 50 | $ 1.92 | |||
| 100 | $ 1.84 | |||
| 250 | $ 1.78 | |||
| 500 | $ 1.73 | |||
| 1000 | $ 1.68 | |||
| Digi-Reel® | 1 | $ 3.13 | ||
| 10 | $ 2.54 | |||
| 25 | $ 2.05 | |||
| 50 | $ 1.92 | |||
| 100 | $ 1.84 | |||
| 250 | $ 1.78 | |||
| 500 | $ 1.73 | |||
| 1000 | $ 1.68 | |||
| Tape & Reel (TR) | 2000 | $ 1.68 | ||
Description
General part information
MABA-010321 Series
RF Balun 50MHz ~ 1.2GHz 1:1 6-SMD (5 Leads), Flat Lead
