LCD-S2X1C50TR

Active

Lumex Opto/Components Inc.

LCD MOD 2.5DIG 2.5 X 1 REFLECTIV

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 2.5DIG 2.5 X 1 REFLECTIV

Technical Specifications

Parameters and characteristics commom to parts in this series

LCD MOD 2.5DIG 2.5X1 TRANSFLECTV

Part	Display Type	Backlight	Viewing Area [y]	Viewing Area [x]	Character Size [custom]	Character Size [custom]	Display Mode	Display Format [y]	Display Format [x]	Background Color	Number of Characters	Character Format
Lumex Opto/Components Inc. LCD-S2X1C50TF	TN - Twisted Nematic	Without Backlight	17.17 mm	26 mm	7 mm	12.17 mm	Transflective	1	2.5	Gray	2.5	7-Segment
Lumex Opto/Components Inc. LCD-S2X1C50TR	TN - Twisted Nematic	Without Backlight	17.17 mm	26 mm	7 mm	12.17 mm	Reflective	1	2.5	Gray	2.5	7-Segment

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

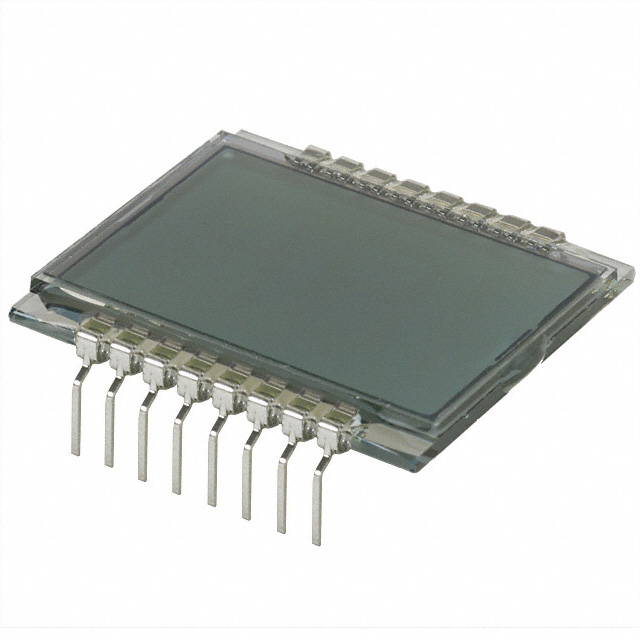

Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight 30.00mm x 26.17mm x 2.80mm

Technical documentation and resources

No documents available
