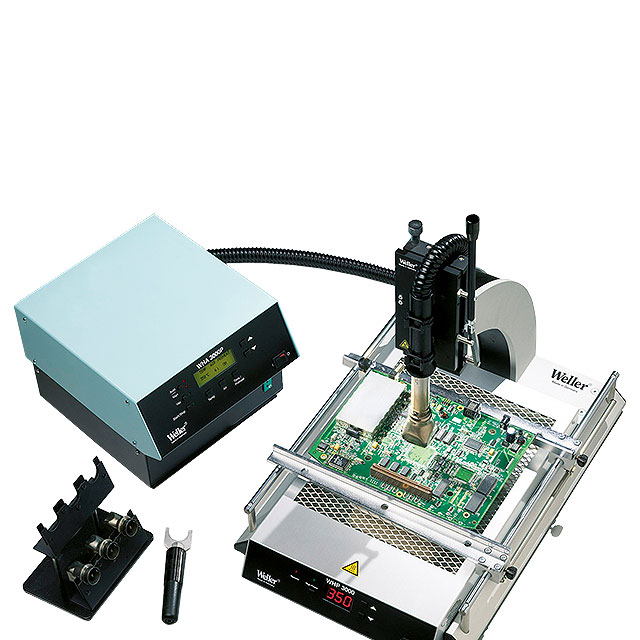

WHA3000PSN

Obsolete

Apex Tool Group

REWORK STATION 700W 1 CH 230V

Search across all available documentation for this part.

Obsolete

Apex Tool Group

REWORK STATION 700W 1 CH 230V

Technical Specifications

Parameters and characteristics for this part

Specification	WHA3000PSN

Base Unit	WHA3000P
Control/Display Type	Digital
Features	Internal Air, Vacuum, Ion Trap, ESD Safe, Programmable, LCD Display
Includes	Board Holder, Nozzle Removal Tool, Heating Plate, Foot Switch, Iron Holder
Number of Channels	1
Plug Type	NEMA 5-15
Supplied Iron, Tweezer, Handle	HAP3
Supplied Tips/Nozzles	NQ30
Temperature Range [Max]	550 °C
Temperature Range [Max]	550 °C
Temperature Range [Min]	50 °C
Temperature Range [Min]	50 °C
Tip Cleaner	Not Included
Type	Rework (Hot Air)
Voltage - Input	230 V
Wattage	700 W
Workstand	AKT30

Part	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Max]	Includes	Voltage - Input	Control/Display Type	Number of Channels	Wattage	Supplied Iron, Tweezer, Handle	Tip Cleaner	Plug Type	Supplied Tips/Nozzles	Features	Workstand	Base Unit	Type
Apex Tool Group WHA3000PSN	50 °C	50 °C	550 °C	550 °C	Board Holder Foot Switch Heating Plate Iron Holder Nozzle Removal Tool	230 V	Digital	1	700 W	HAP3	Not Included	NEMA 5-15	NQ30	ESD Safe Internal Air Ion Trap LCD Display Programmable Vacuum	AKT30	WHA3000P	Rework (Hot Air)
Apex Tool Group WHA3000PN	50 °C	50 °C	550 °C	550 °C	Foot Switch Iron Holder Nozzle Removal Tool	120 V	Digital	1	700 W		Not Included		WHA	ESD Safe LCD Display	Included Not Specified	WHA3P	Rework (Hot Air)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

REWORK STATION 700W 1 CH 230V

Technical documentation and resources

No documents available
