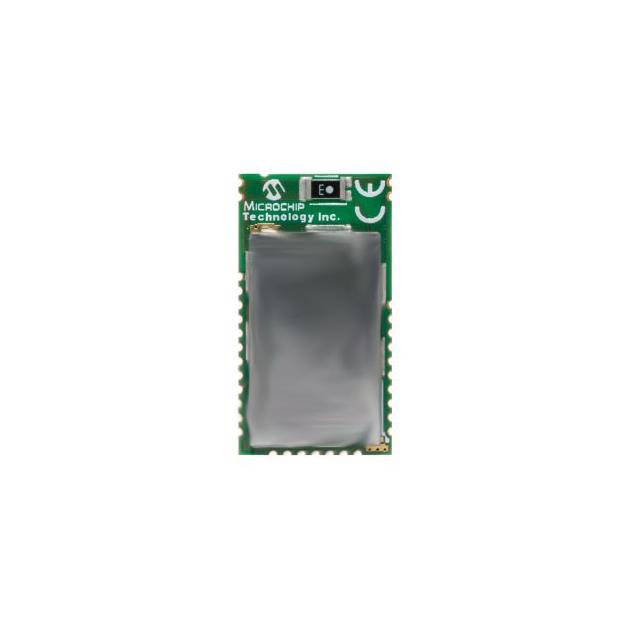

BM78SPPS5MC2-0006AA

Active

Microchip Technology

BLUETOOTH MODULES - 802.15.1 BLUETOOTH 5 DUAL MODE MODULE - SHIELDED FW 1.38

Find alt

Alpha

BM78SPPS5MC2-0006AA

Active

Microchip Technology

BLUETOOTH MODULES - 802.15.1 BLUETOOTH 5 DUAL MODE MODULE - SHIELDED FW 1.38

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

BM78 Series

The BM78 is a fully-certified Bluetooth® dual-mode (BR/EDR/LE) module for designers who want to easily add dual mode Bluetooth wireless capability to their products. Delivering local connectivity for the Internet of Things (IoT), the BM78 bridges your product to Smart Phones and Tablets for convenient data transfer, control and access to cloud applications.

This Bluetooth SIG certified module provides a complete wireless solution with Bluetooth stack on-board, integrated antenna, and worldwide radio certifications in a compact surface mount package, 22 x 12 x 2.4 mm. It supports GAP, SDP, SPP, and GATT profiles. Data is transferred over the Bluetooth link by sending/receiving data via transparent mode over UART, making it easy to integrate with any processor or Microcontroller with a UART interface. Configuration is made easy using a Windows® based GUI or directly via UART by a microcontroller.

The Microchip Bluetooth Data (MBD) mobile app is available to speed up development for both [Android](https://play.google.com/store/apps/details?id=com.microchip.bluetooth.data) and [iOS](https://apps.apple.com/us/app/microchip-bluetooth-data/id1319166097).

Technical Specifications

Parameters and characteristics for this part

Specification	BM78SPPS5MC2-0006AA

Antenna Type	Chip, Integrated
Current - Receiving	37 mA
Current - Transmitting	43 mA
Data Rate	115.2 kbps
Frequency	2.4 GHz
Memory Size (Flash)	4 MB
Memory Size (ROM)	320 kB
Memory Size (SRAM)	28 kB
Memory Type	Flash, ROM, SRAM
Mounting Type	Surface Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Package / Case	33-SMD Module
Power - Output	2 dBm
Protocol	Bluetooth v5.0 Dual Mode
RF Family/Standard	Bluetooth
Sensitivity	-92 dBm
Serial Interfaces	UART, I2C
Voltage - Supply (Maximum)	4.2 V
Voltage - Supply (Minimum)	3.3 V

BM78 Series

Part	Firmware Version	Antenna Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	RF Family/Standard	Package / Case	Mounting Type	Power - Output	Protocol	Current - Transmitting	Frequency	Sensitivity	Serial Interfaces	Current - Receiving	Operating Temperature (Max)	Operating Temperature (Min)	Data Rate	Memory Type	Memory Size (Flash)	Memory Size (SRAM)	Memory Size (ROM)
Microchip Technology BM78SPP05MC2-0002AA	1.2	Antenna Not Included	4.2 V	3.2 V	Bluetooth	30-SMD Module	Surface Mount	1.5 dBm	Bluetooth v5.0 Dual Mode	43 mA	2.4 GHz	-92 dBm	I2C UART	37 mA	70 °C	-20 °C
Microchip Technology BM78SPPS5MC2-0001AA	1.1	Chip Integrated	4.3 V	3.2 V	Bluetooth	33-SMD Module	Surface Mount	2 dBm	Bluetooth v5.0 Dual Mode	43 mA	2.4 GHz	-90 dBm	I2C UART	37 mA	70 °C	-20 °C	115.2 kbps
Microchip Technology BM78SPPS5NC2-0001AA		Chip Integrated	4.3 V	3.2 V	Bluetooth	33-SMD Module	Surface Mount	2 dBm	Bluetooth v5.0 Dual Mode	43 mA	2.4 GHz	-90 dBm	I2C UART	37 mA	70 °C	-20 °C	115.2 kbps
Microchip Technology BM78SPP05NC2-0002AA		Antenna Not Included	4.2 V	3.3 V	Bluetooth	30-SMD Module	Surface Mount	1.5 dBm	Bluetooth v5.0 Dual Mode	43 mA	2.4 GHz	-92 dBm	I2C UART	37 mA	70 °C	-20 °C
Microchip Technology BM78SPP05MC2-0006AA		Antenna Not Included	4.2 V	3.3 V	Bluetooth	30-SMD Module	Surface Mount	2 dBm	Bluetooth v5.0 Dual Mode	43 mA	2.4 GHz	-92 dBm	I2C UART	37 mA	70 °C	-20 °C	115.2 kbps	Flash ROM SRAM	4 MB	28 kB	320 kB
Microchip Technology BM78SPPS5NC2-0002AA		Chip Integrated	4.2 V	3.3 V	Bluetooth	Module	Surface Mount	1.5 dBm	Bluetooth v5.0 Dual Mode	43 mA	2.4 GHz	-92 dBm	I2C UART	37 mA	70 °C	-20 °C	1 Mbps
Microchip Technology BM78SPP05MC2-0004AA	1.35	Antenna Not Included	4.2 V	3.3 V	Bluetooth	Module	Surface Mount	1.5 dBm	Bluetooth v5.0 Dual Mode	43 mA	2.4 GHz	-92 dBm	I2C UART	37 mA	70 °C	-20 °C
Microchip Technology BM78SPPS5MC2-0006AA		Chip Integrated	4.2 V	3.3 V	Bluetooth	33-SMD Module	Surface Mount	2 dBm	Bluetooth v5.0 Dual Mode	43 mA	2.4 GHz	-92 dBm	I2C UART	37 mA	70 °C	-20 °C	115.2 kbps	Flash ROM SRAM	4 MB	28 kB	320 kB
Microchip Technology BM78SPPS5MC2-0004AA		Chip Integrated	4.2 V	3.3 V	Bluetooth	Module	Surface Mount	1.5 dBm	Bluetooth v5.0 Dual Mode	43 mA	2.4 GHz	-92 dBm	I2C UART	37 mA	70 °C	-20 °C
Microchip Technology BM78SPPS5MC2-0002AA	1.2	Chip Integrated	4.3 V	3.2 V	Bluetooth	Module	Surface Mount	10 dBm	Bluetooth v5.0 Dual Mode	43 mA	2.4 GHz	-92 dBm	I2C UART	37 mA	70 °C	-20 °C		Flash ROM SRAM	4 MB	28 kB	320 kB
