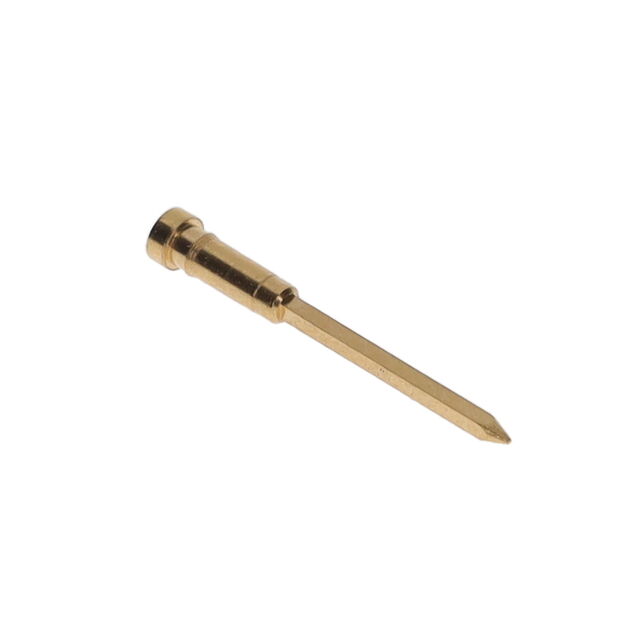

1031-2-17-15-30-14-02-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Search across all available documentation for this part.

1031-2-17-15-30-14-02-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1031-2-17-15-30-14-02-0

Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Brass Alloy
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall [x]	0.553 in
Length - Overall [x]	14.05 mm
Mounting Hole Diameter [diameter]	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm
Termination	Press-Fit

1031-2 Series

Part	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Termination	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth	Socket Depth	Tail Type	Operating Temperature [Min]	Operating Temperature [Max]	Tail Diameter	Tail Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]
Mill-Max Manufacturing Corp. 1031-2-17-15-30-14-02-0	1.83 mm	0.072 in	Gold	10 Áin	0.25 Ám	0.553 in	14.05 mm	Press-Fit	Brass Alloy	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 1031-2-17-80-30-14-02-0	1.83 mm	0.072 in	Gold	200 Áin	5.08 Ám	0.553 in	14.05 mm	Press-Fit	Brass Alloy	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 1031-2-17-01-32-02-02-0	1.83 mm	0.072 in	Tin-Lead	100 µin	2.54 µm	0.553 in	14.05 mm	Press-Fit	Brass Alloy	0.057 "	1.45 mm	0.162 in	4.12 mm	Wire Wrap	-55 °C	125 °C	0.64 mm	0.025 in	0.025 "	0.64 mm	0.015 "	0.38 mm
Mill-Max Manufacturing Corp. 1031-2-17-15-32-14-02-0	1.83 mm	0.072 in	Gold	10 Áin	0.25 Ám	0.553 in	14.05 mm	Press-Fit	Brass Alloy	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 1031-2-17-80-32-84-02-0	1.83 mm	0.072 in	Tin			0.553 in	14.05 mm	Press-Fit	Brass Alloy	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 1031-2-05-21-00-00-01-0	1.83 mm	0.072 in	Unplated			0.553 in	14.05 mm	Press-Fit	Brass Alloy	0.057 "	1.45 mm	0.162 in	4.12 mm	Wire Wrap	-55 °C	125 °C	0.64 mm	0.025 in
Mill-Max Manufacturing Corp. 1031-2-17-01-30-14-02-0	1.83 mm	0.072 in	Gold	10 Áin	0.25 Ám	0.553 in	14.05 mm	Press-Fit	Brass Alloy	0.057 "	1.45 mm	0.162 in	4.12 mm	Wire Wrap	-55 °C	125 °C	0.64 mm	0.025 in	0.025 "	0.64 mm	0.015 "	0.38 mm
Mill-Max Manufacturing Corp. 1031-2-17-01-32-27-02-0	1.83 mm	0.072 in	Gold	30 Áin	0.76 Ám	0.553 in	14.05 mm	Press-Fit	Brass Alloy	0.057 "	1.45 mm	0.162 in	4.12 mm	Wire Wrap	-55 °C	125 °C	0.64 mm	0.025 in	0.025 "	0.64 mm	0.015 "	0.38 mm
Mill-Max Manufacturing Corp. 1031-2-17-15-30-27-02-0	1.83 mm	0.072 in	Gold	30 Áin	0.76 Ám	0.553 in	14.05 mm	Press-Fit	Brass Alloy	0.057 "	1.45 mm	0.162 in	4.12 mm	Wire Wrap	-55 °C	125 °C	0.64 mm	0.025 in	0.025 "	0.64 mm	0.015 "	0.38 mm
Mill-Max Manufacturing Corp. 1031-2-17-80-30-27-02-0	1.83 mm	0.072 in	Gold	30 Áin	0.76 Ám	0.553 in	14.05 mm	Press-Fit	Brass Alloy	0.057 "	1.45 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.39
		10	$ 1.21
		25	$ 1.16
		50	$ 1.14
		100	$ 1.08
		250	$ 0.98
		500	$ 0.90
		1000	$ 0.77
		3000	$ 0.72

Description

General part information

1031-2 Series

Terminal Connector Gold

Documents

Technical documentation and resources

No documents available
