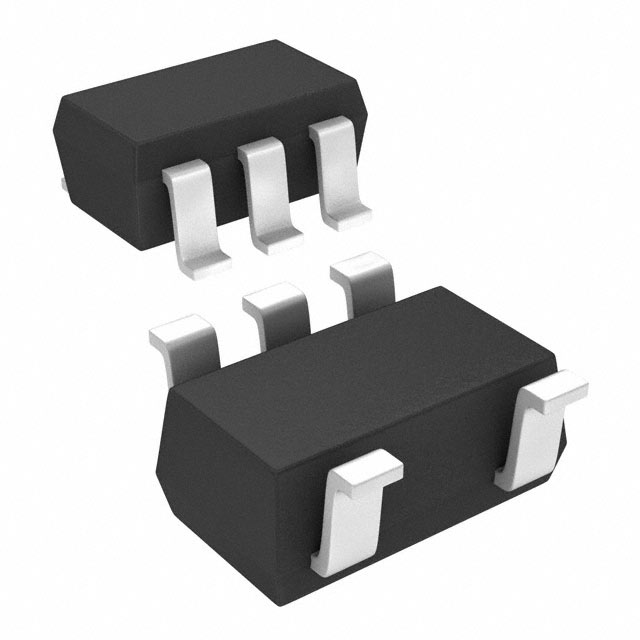

DF5A5.6FTE85LF

Active

Toshiba Semiconductor and Storage

TVS DIODE 2.5VWM SMV

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

TVS DIODE 2.5VWM SMV

Technical Specifications

Parameters and characteristics for this part

Specification	DF5A5.6FTE85LF

Applications	General Purpose
Capacitance @ Frequency	65 pF
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Power Line Protection	False
Supplier Device Package	SMV
Type	Zener
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	5.3 V
Voltage - Reverse Standoff (Typ)	2.5 V

Part	Package / Case	Mounting Type	Type	Unidirectional Channels [custom]	Supplier Device Package	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ)	Applications	Voltage - Breakdown (Min) [Min]
Toshiba Semiconductor and Storage DF5A5.6JE,LM	SOT-553	Surface Mount	Zener	4	ESV	65 pF	2.5 V	General Purpose	5.3 V
Toshiba Semiconductor and Storage DF5A5.6LFU(TE85L,F	5-TSSOP SC-70-5 SOT-353	Surface Mount	Zener	4	USV	8 pF	3.5 V	General Purpose	5.3 V
Toshiba Semiconductor and Storage DF5A5.6FTE85LF	SC-74A SOT-753	Surface Mount	Zener	4	SMV	65 pF	2.5 V	General Purpose	5.3 V
Toshiba Semiconductor and Storage DF5A5.6CJE,LM	SOT-553	Surface Mount	Zener	4	ESV	29 pF	3.5 V	General Purpose	5.3 V
Toshiba Semiconductor and Storage DF5A5.6CFUTE85LF	5-TSSOP SC-70-5 SOT-353	Surface Mount	Zener	4	USV	29 pF	3.5 V	General Purpose	5.3 V
Toshiba Semiconductor and Storage DF5A5.6FUTE85LF	5-TSSOP SC-70-5 SOT-353	Surface Mount	Zener	4	USV	65 pF	2.5 V	General Purpose	5.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Clamp Ipp Tvs Diode Surface Mount SMV
