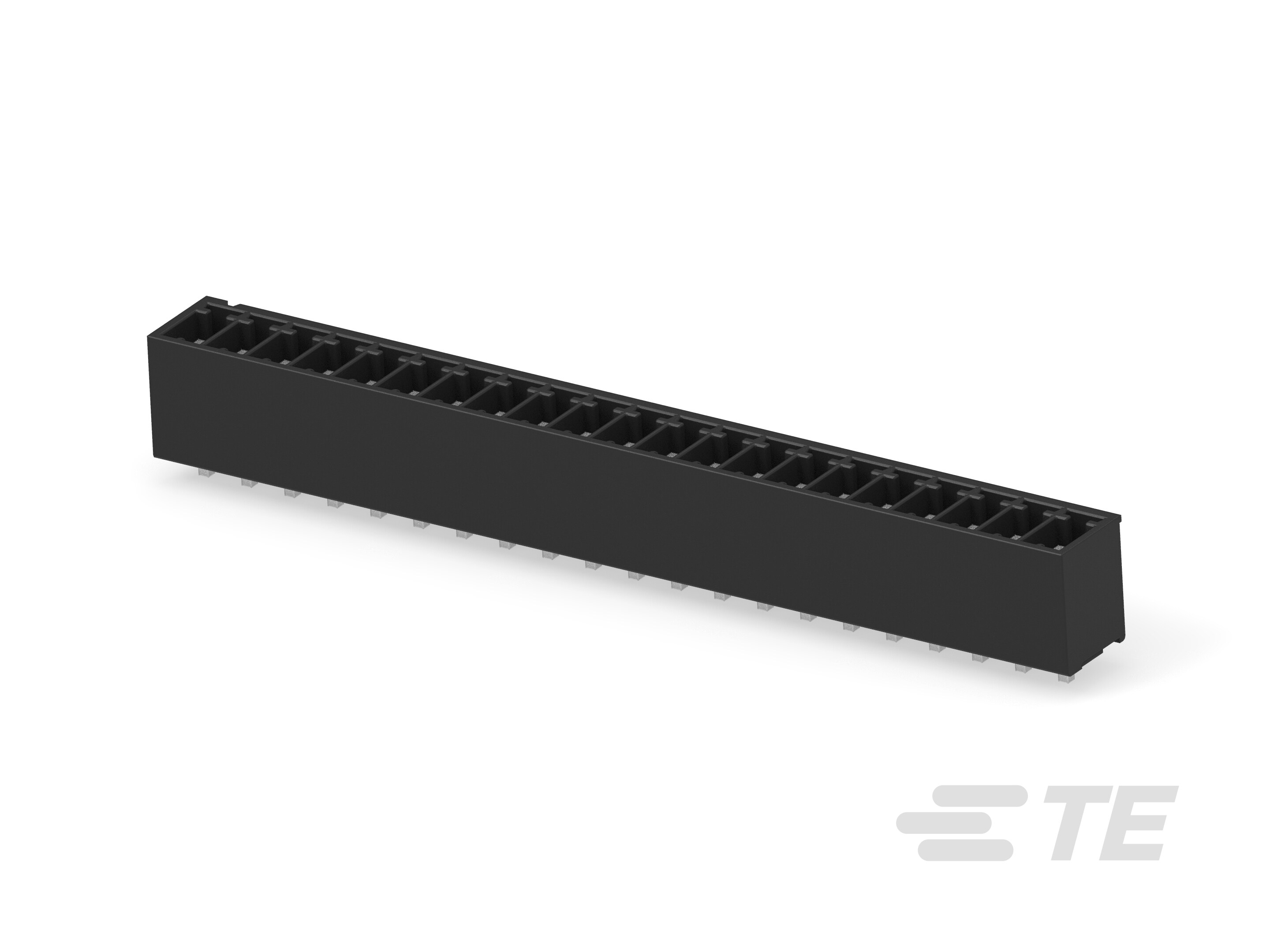

Specification	2-2342071-1

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Contact Tail Length	0.075 in
Current - UL	11 A
Features	High Temp Housing
Header Orientation	Vertical
Housing Material	Nylon, Polyamide, PA
Insulation Height	0.362 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	21
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.138 in
Positions Per Level	21
Termination Style	Solder
Type	Shrouded (4 Side), Male Pins, Header
Voltage - UL	300 V

2342071 Series

Part	Color	Number of Positions	Features	Current - UL	Header Orientation	Contact Mating Finish	Voltage - UL	Operating Temperature (Min)	Operating Temperature (Max)	Pitch	Termination Style	Type	Mounting Type	Positions Per Level	Number of Levels	Contact Tail Length	Contact Material	Insulation Height	Material Flammability Rating	Housing Material
TE Connectivity AMP Connectors 1-2342071-5	Black	15	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	15	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide
TE Connectivity AMP Connectors 2-2342071-5	Black	25	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	25	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide
TE Connectivity AMP Connectors 1-2342071-9	Black	19	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	19	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide
TE Connectivity AMP Connectors 1-2342071-8	Black	18	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	18	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide
TE Connectivity AMP Connectors 1-2342071-1	Black	11	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	11	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide
TE Connectivity AMP Connectors 2342071-7	Black	7	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	7	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide
TE Connectivity AMP Connectors 2-2342071-3	Black	23	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	23	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide
TE Connectivity AMP Connectors 2-2342071-4	Black	24 pos	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	24	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide
TE Connectivity AMP Connectors 1-2342071-2	Black	12	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	12	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide
TE Connectivity AMP Connectors 1-2342071-3	Black	13	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	13	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide
