2342071 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PLUGGABLE TERMINAL BLOCKS 15POS HDR ST,HT 3.5MM PITCH,TL 1.9MM

Part	Color	Number of Positions	Features	Current - UL	Header Orientation	Contact Mating Finish	Voltage - UL	Operating Temperature (Min)	Operating Temperature (Max)	Pitch	Termination Style	Type	Mounting Type	Positions Per Level	Number of Levels	Contact Tail Length	Contact Material	Insulation Height	Material Flammability Rating	Housing Material
TE Connectivity AMP Connectors 1-2342071-5	Black	15	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	15	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide
TE Connectivity AMP Connectors 2-2342071-5	Black	25	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	25	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide
TE Connectivity AMP Connectors 1-2342071-9	Black	19	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	19	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide
TE Connectivity AMP Connectors 1-2342071-8	Black	18	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	18	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide
TE Connectivity AMP Connectors 1-2342071-1	Black	11	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	11	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide

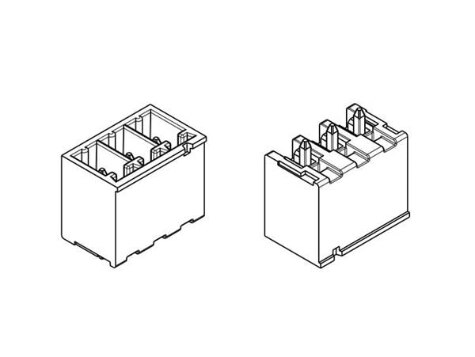

TE Connectivity AMP Connectors 2342071-7	Black	7	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	7	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide
TE Connectivity AMP Connectors 2-2342071-3	Black	23	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	23	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide

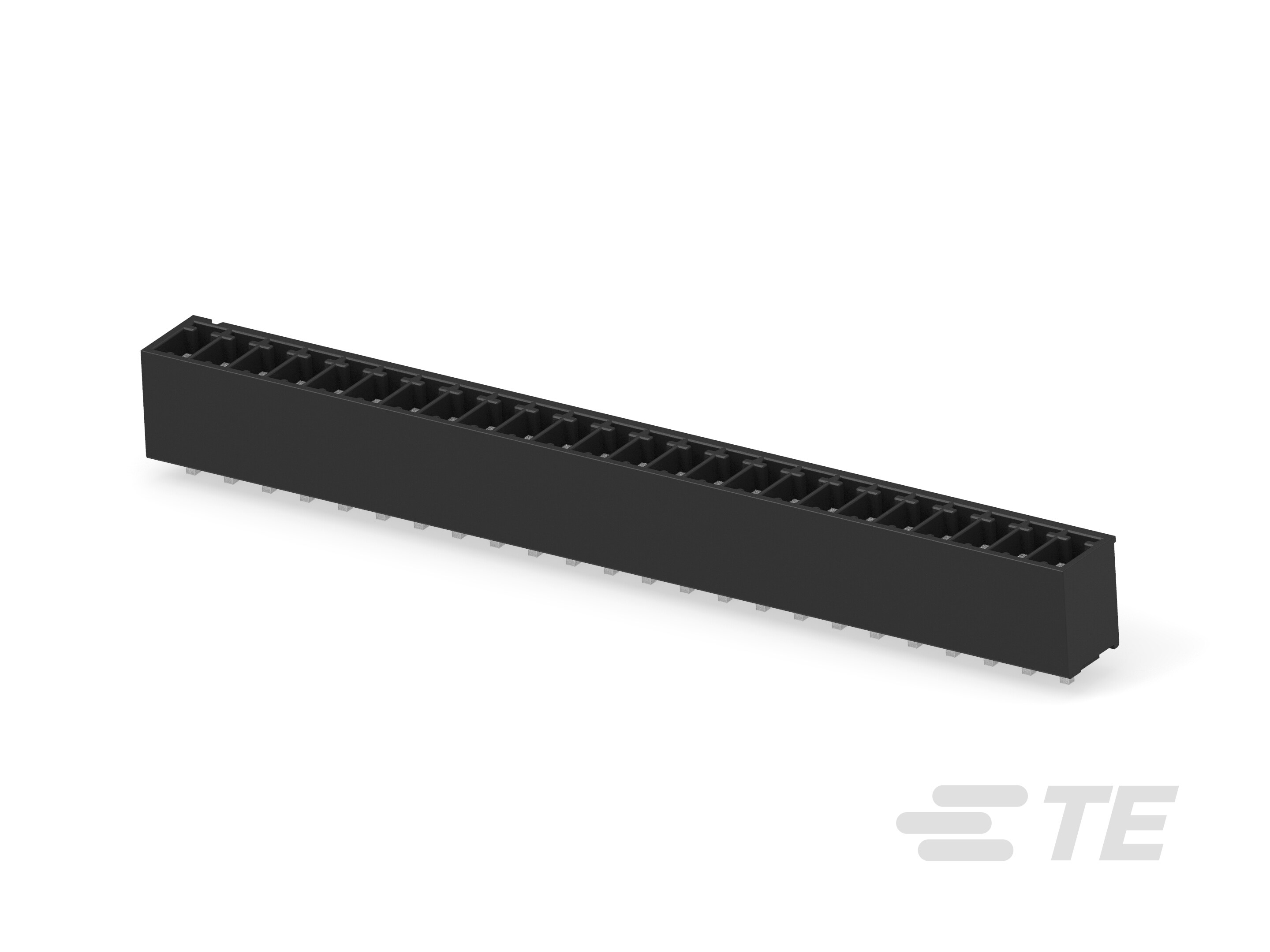

TE Connectivity AMP Connectors 2-2342071-4	Black	24 pos	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	24	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide

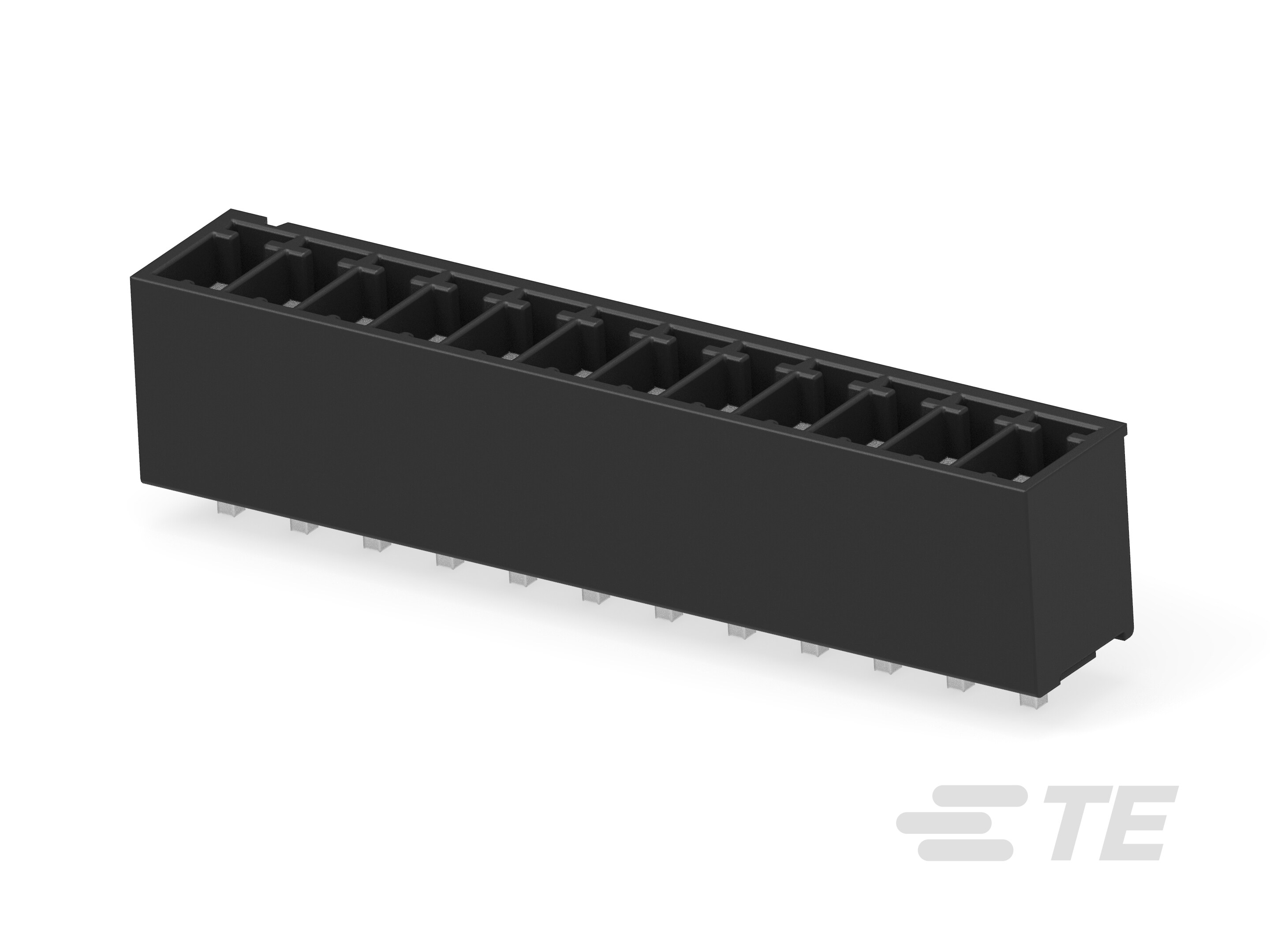

TE Connectivity AMP Connectors 1-2342071-2	Black	12	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	12	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide
TE Connectivity AMP Connectors 1-2342071-3	Black	13	High Temp Housing	11 A	Vertical	Tin	300 V	-40 °C	105 °C	0.138 in	Solder	Header Male Pins Shrouded (4 Side)	Through Hole	13	1	0.075 in	Copper Alloy	0.362 in	UL94 V-0	Nylon PA Polyamide
