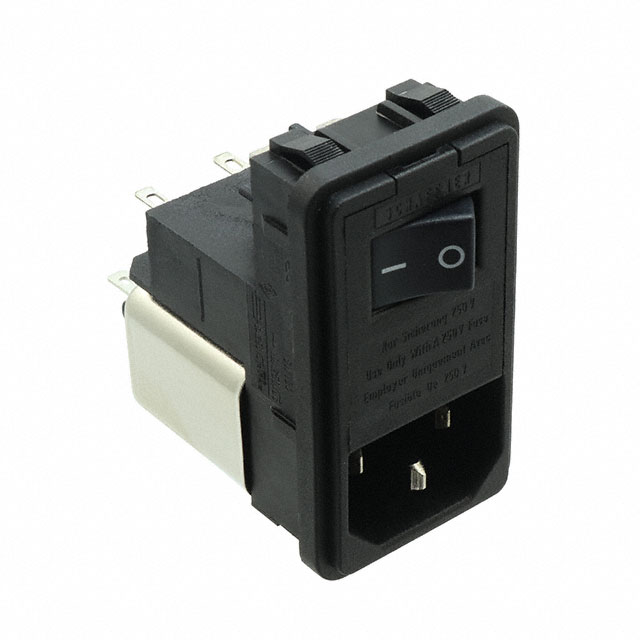

FN382B-6-21

Active

TE Connectivity Raychem Cable Protection

AC POWER ENTRY MODULES 6A MED SNAP IN-2FUSE POWER ENTRY MODULES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

FN382B-6-21

Active

TE Connectivity Raychem Cable Protection

AC POWER ENTRY MODULES 6A MED SNAP IN-2FUSE POWER ENTRY MODULES

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN382B-6-21

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Filter	6 A
Features	Bleed Resistor
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Ingress Protection	IP40
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions	Variable Size
Panel Thickness [Max]	0.126 in
Panel Thickness [Max]	3.2 mm
Panel Thickness [Min]	0.79 mm
Panel Thickness [Min]	0.031 "
Switch Features	Switch On-Off
Termination	Solder Eyelet

FN382 Series

AC Power Entry Modules 6A MED SNAP IN-2FUSE POWER ENTRY MODULES

Part	Termination	Mounting Type	Panel Cutout Dimensions	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Connector Style	Connector Type	Ingress Protection	Switch Features	Current Rating - Filter	Fuse Holder, Drawer	Filter Type	Approval Agency	Material Flammability Rating	Features
TE Connectivity Raychem Cable Protection FN382-2-22	Solder Eyelet	Panel Mount Snap-In	Variable Size	0.126 in	0.79 mm	3.2 mm	0.031 "	IEC 320-C14	Receptacle Male Blades - Module	IP40	Switch On-Off	2 A	Fuse Holder Twin Fused	Filtered (EMI RFI) - Commercial	CSA UL VDE	UL94 V-2
TE Connectivity Raychem Cable Protection FN382B-6-21	Solder Eyelet	Panel Mount Snap-In	Variable Size	0.126 in	0.79 mm	3.2 mm	0.031 "	IEC 320-C14	Receptacle Male Blades - Module	IP40	Switch On-Off	6 A	Fuse Holder Twin Fused	Filtered (EMI RFI) - Commercial Medical	CSA UL VDE	UL94 V-2	Bleed Resistor
TE Connectivity Raychem Cable Protection FN382-6-21	Solder Eyelet	Panel Mount Snap-In	Variable Size	0.126 in	0.79 mm	3.2 mm	0.031 "	IEC 320-C14	Receptacle Male Blades - Module	IP40	Switch On-Off	6 A	Fuse Holder Twin Fused	Filtered (EMI RFI) - Commercial	CSA UL VDE	UL94 V-2
TE Connectivity Raychem Cable Protection FN382-4-22	Solder Eyelet	Panel Mount Snap-In	Variable Size	0.126 in	0.79 mm	3.2 mm	0.031 "	IEC 320-C14	Receptacle Male Blades - Module	IP40	Switch On-Off	4 A	Fuse Holder Twin Fused	Filtered (EMI RFI) - Commercial	CSA UL VDE	UL94 V-2
TE Connectivity Raychem Cable Protection FN382-6-22	Solder Eyelet	Panel Mount Snap-In	Variable Size	0.126 in	0.79 mm	3.2 mm	0.031 "	IEC 320-C14	Receptacle Male Blades - Module	IP40	Switch On-Off	6 A	Fuse Holder Twin Fused	Filtered (EMI RFI) - Commercial	CSA UL VDE	UL94 V-2
TE Connectivity Raychem Cable Protection FN382B-6-22	Solder Eyelet	Panel Mount Snap-In	Variable Size	0.126 in	0.79 mm	3.2 mm	0.031 "	IEC 320-C14	Receptacle Male Blades - Module	IP40	Switch On-Off	6 A	Fuse Holder Twin Fused	Filtered (EMI RFI) - Commercial Medical	CSA UL VDE	UL94 V-2	Bleed Resistor

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 43.52
		10	$ 38.11
		25	$ 36.46
		40	$ 35.28
		80	$ 34.11
		240	$ 32.23
Sager	N/A	1	$ 33.75
		11	$ 31.90
		21	$ 31.05
		43	$ 30.25
		221	$ 28.24

Description

General part information

FN382 Series

AC Power Entry Modules 6A MED SNAP IN-2FUSE POWER ENTRY MODULES
