EN4SD242010SS

Active

Hammond Manufacturing

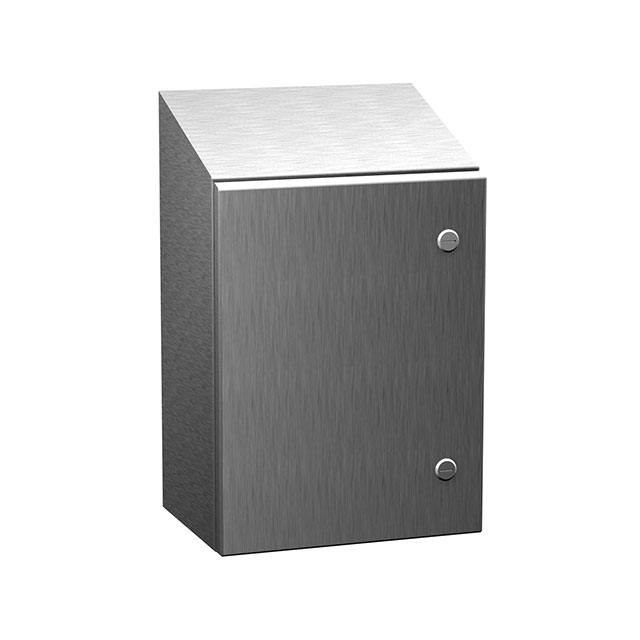

NATURAL STAINLESS STEEL WALL MOUNT TYPE 4X ENCLOSURE

Deep-Dive with AI

Search across all available documentation for this part.

EN4SD242010SS

Active

Hammond Manufacturing

NATURAL STAINLESS STEEL WALL MOUNT TYPE 4X ENCLOSURE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EN4SD242010SS

Area (L x W)	3097 cm²
Area (L x W)	480 in²
Color	Natural
Container Type	Box
Design	Hinged Door, Lid
Features	Stainless Steel Hinges
Height [z]	10 in
Height [z]	254 mm
Ratings	NEMA 12, UL-508, IP66, NEMA 13, NEMA 4, NEMA 4X, NEMA 3R
Size / Dimension [x]	24 in
Size / Dimension [x]	609.6 mm
Size / Dimension [y]	508 mm
Size / Dimension [y]	20 in
Thickness	16 Gauge
Weight	17.2 kg
Weight	38 lbs

EN4SD Series

Part	Area (L x W)	Area (L x W)	Shipping Info	Weight	Weight	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Color	Design	Material	Thickness	Features	Height [z]	Height [z]	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension [y]
Hammond Manufacturing EN4SD723612GY	1.672 m²	2592 in²	Drop shipped from the Manufacturer's Warehouse	195 lbs	88.5 kg	IP66 NEMA 12 NEMA 3R NEMA 4 UL-508	72 "	914.4 mm	36 in	1828.8 mm	Box	Gray	Hinged Door Lid	Metal Steel	14 Gauge	Stainless Steel Hinges
Hammond Manufacturing EN4SD162010SS	2065 cm˛	320 in²		28 lbs	12.7 kg	IP66 NEMA 12 NEMA 13 NEMA 3R NEMA 4 NEMA 4X UL-508	20 "	406.4 mm	16 in	508 mm	Box	Natural	Hinged Door Lid		16 Gauge	Stainless Steel Hinges	10 in	254 mm
Hammond Manufacturing EN4SD30308S16	5806 cm²	900 in²		67 lbs	30.4 kg	IP66 NEMA 12 NEMA 13 NEMA 3R NEMA 4 NEMA 4X UL-508	30 in	762 mm	30 "	762 mm	Box	Natural	Hinged Door Lid		14 Gauge	Stainless Steel Hinges	8 "	203.2 mm
Hammond Manufacturing EN4SD423010SSR			Drop shipped from the Manufacturer's Warehouse	110 lbs	49.9 kg	IP66 NEMA 12 NEMA 13 NEMA 3R NEMA 4 NEMA 4X UL-508	42 in	762 mm	30 "	1066.8 mm	Box	Natural	Hinged Door Lid		14 Gauge	Stainless Steel Hinges	10 in	254 mm	1260 in²	8129 cm²
Hammond Manufacturing EN4SD363012LG	6968 cm²	1080 in²	Drop shipped from the Manufacturer's Warehouse	91 lbs	41.3 kg	IP66 NEMA 12 NEMA 3R NEMA 4 UL-508	36 "	762 mm	30 "	914.4 mm	Box	Gray	Hinged Door Lid	Metal Steel	14 Gauge	Stainless Steel Hinges
Hammond Manufacturing EN4SD242010SS	3097 cm²	480 in²		38 lbs	17.2 kg	IP66 NEMA 12 NEMA 13 NEMA 3R NEMA 4 NEMA 4X UL-508	24 in	508 mm	20 in	609.6 mm	Box	Natural	Hinged Door Lid		16 Gauge	Stainless Steel Hinges	10 in	254 mm
Hammond Manufacturing EN4SD242410S16	3716 cm²	576 in²				IP66 NEMA 12 NEMA 13 NEMA 3R NEMA 4 NEMA 4X UL-508	24 in	609.6 mm	24 "	609.6 mm	Box	Natural	Hinged Door Lid		14 Gauge	Stainless Steel Hinges	10 in	254 mm
Hammond Manufacturing EN4SD482412LG	7432 cm²	1152 in²	Drop shipped from the Manufacturer's Warehouse	98 lbs	44.5 kg	IP66 NEMA 12 NEMA 3R NEMA 4 UL-508	48 "	609.6 mm	24 "	1219.2 mm	Box	Gray	Hinged Door Lid	Metal Steel	14 Gauge	Stainless Steel Hinges
Hammond Manufacturing EN4SD483620GY	1.115 m²	1728 in²	Drop shipped from the Manufacturer's Warehouse	165 lbs	74.8 kg	IP66 NEMA 12 NEMA 3R NEMA 4 UL-508	48 "		36 in	1219.2 mm	Box	Gray	Hinged Door Lid	Metal Steel	14 Gauge	Stainless Steel Hinges	20 in	508 mm			914.4 mm
Hammond Manufacturing EN4SD20128GY	1548 cm²	240 in²		22 lbs	10 kg	IP66 NEMA 12 NEMA 3R NEMA 4 UL-508	20 "	304.8 mm	12 "	508 mm	Box	Gray	Hinged Door Lid	Metal Steel	16 Gauge	Stainless Steel Hinges	8 "	203.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1069.27

Description

General part information

EN4SD Series

Box Metal, Stainless Steel Natural Hinged Door, Lid 24.000" L x 20.000" W (609.60mm x 508.00mm) X 10.000" (254.00mm)

Documents

Technical documentation and resources

No documents available
