SFV5R-1STE1HLF
ActiveAmphenol ICC (FCI)

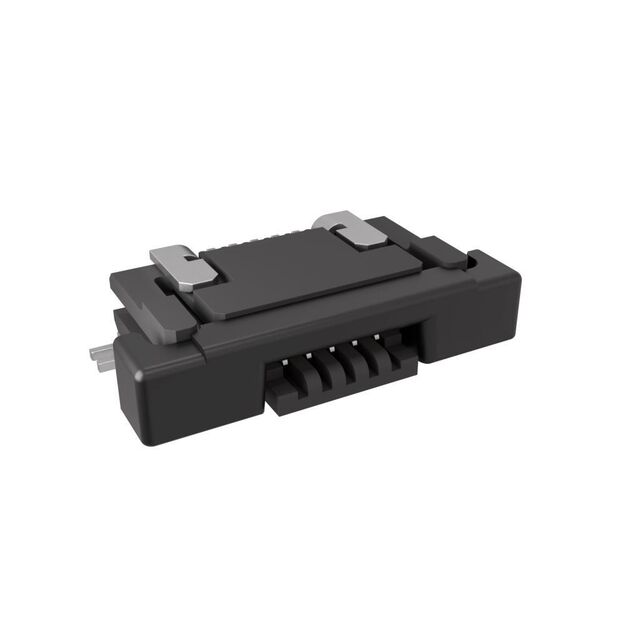

CONN FFC BOTTOM 5POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
SFV5R-1STE1HLF
ActiveAmphenol ICC (FCI)
CONN FFC BOTTOM 5POS 0.5MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFV5R-1STE1HLF |
|---|---|
| Actuator Color | Beige |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free |
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 1.8 mm |
| Height Above Board | 0.071 in |
| Housing Color | Black |
| Housing Material | Polyamide (PA), Nylon, Glass Filled, Halogen Free |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
SFV5R Series
| Part | Cable End Type | Actuator Color | Voltage Rating | Housing Material | Material Flammability Rating | Pitch [x] | Pitch [x] | Termination | Actuator Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Flat Flex Type | Housing Color | Current Rating (Amps) | Contact Material | Connector/Contact Type | Contact Finish | FFC, FCB Thickness [z] | Height Above Board | Height Above Board | Features | Locking Feature | Mating Cycles | FFC, FCB Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Straight Tapered | Brown | 50 V | Polyamide (PA) Nylon Glass Filled | UL94 V-0 | 0.5 mm | 0.02 in | Solder | Polyphenylene Sulfide (PPS) Glass Filled | Surface Mount Right Angle | 105 ░C | -55 °C | FFC FPC | Black | 0.5 A | Phosphor Bronze | Contacts Bottom | Tin | 0.3 mm 0.33 mm | 1.8 mm | 0.071 in | Solder Retention Zero Insertion Force (ZIF) | Slide Lock | ||
Amphenol ICC (FCI) | Tapered | Brown | 50 V | Polyamide (PA) Nylon Glass Filled Halogen Free | UL94 V-0 | 0.5 mm | 0.02 in | Solder | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Surface Mount Right Angle | 105 ░C | -55 °C | FFC FPC | Black | 0.5 A | Phosphor Bronze | Contacts Top | Gold | 1.8 mm | 0.071 in | Slide Lock | 20 | 0.33 mm | ||
Amphenol ICC (FCI) | Straight Tapered | Brown | 50 V | Polyamide (PA) Nylon Glass Filled | UL94 V-0 | 0.5 mm | 0.02 in | Solder | Polyphenylene Sulfide (PPS) Glass Filled | Surface Mount Right Angle | 105 ░C | -55 °C | FFC FPC | Black | 0.5 A | Phosphor Bronze | Contacts Top | Tin Alloy | 0.3 mm 0.33 mm | 1.8 mm | 0.071 in | Solder Retention Zero Insertion Force (ZIF) | Slide Lock | 20 | |
Amphenol ICC (FCI) | Tapered | Brown | 50 V | Polyamide (PA) Nylon Glass Filled Halogen Free | UL94 V-0 | 0.5 mm | 0.02 in | Solder | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Surface Mount Right Angle | 105 ░C | -55 °C | FPC | Black | 0.5 A | Phosphor Bronze | Contacts Bottom | Gold | 1.8 mm | 0.071 in | Slide Lock | 20 | 0.33 mm | ||
Amphenol ICC (FCI) | Tapered | Beige | 50 V | Polyamide (PA) Nylon Glass Filled Halogen Free | UL94 V-0 | 0.5 mm | 0.02 in | Solder | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Surface Mount Right Angle | 105 ░C | -55 °C | FFC FPC | Black | 0.5 A | Phosphor Bronze | Contacts Bottom | Tin | 1.8 mm | 0.071 in | Slide Lock | 20 | 0.3 mm | ||
Amphenol ICC (FCI) | Straight | Black | 50 V | Polyamide (PA) Nylon Glass Filled Halogen Free | UL94 V-0 | 0.5 mm | 0.02 in | Solder | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Surface Mount Right Angle | 105 ░C | -55 °C | FPC | Black | 0.5 A | Phosphor Bronze | Contacts Bottom | Tin | 1.8 mm | 0.071 in | Solder Retention Zero Insertion Force (ZIF) | Slide Lock | 20 | 0.3 mm | |
Amphenol ICC (FCI) | Straight Tapered | Brown | 50 V | Polyamide (PA) Nylon Glass Filled | UL94 V-0 | 0.5 mm | 0.02 in | Solder | Polyphenylene Sulfide (PPS) Glass Filled | Surface Mount Right Angle | 105 ░C | -55 °C | FFC FPC | Black | 0.5 A | Phosphor Bronze | Contacts Top | Tin | 0.3 mm 0.33 mm | 1.8 mm | 0.071 in | Solder Retention Zero Insertion Force (ZIF) | Slide Lock | ||
Amphenol ICC (FCI) | Tapered | Brown | 50 V | Polyamide (PA) Nylon Glass Filled Halogen Free | UL94 V-0 | 0.5 mm | 0.02 in | Solder | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Surface Mount Right Angle | 105 ░C | -55 °C | FFC FPC | Black | 0.5 A | Phosphor Bronze | Contacts Bottom | Gold | 1.8 mm | 0.071 in | Solder Retention Zero Insertion Force (ZIF) | Slide Lock | 20 | 0.33 mm | |
Amphenol ICC (FCI) | Straight Tapered | Black | 50 V | Polyamide (PA) Nylon Glass Filled Halogen Free | UL94 V-0 | 0.5 mm | 0.02 in | Solder | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Surface Mount Right Angle | 105 ░C | -55 °C | FPC | Black | 0.5 A | Phosphor Bronze | Contacts Top | Tin | 0.3 mm 0.33 mm | 1.8 mm | 0.071 in | Slide Lock | 20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.51 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.23 | |||
| Digi-Reel® | 1 | $ 0.51 | ||
| 10 | $ 0.39 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.23 | |||
| Tape & Reel (TR) | 3000 | $ 0.20 | ||
| 6000 | $ 0.19 | |||
| 9000 | $ 0.18 | |||
| 15000 | $ 0.17 | |||
| 21000 | $ 0.17 | |||
| 30000 | $ 0.16 | |||
Description
General part information
SFV5R Series
5 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
