0980-0-15-20-75-14-11-0
ActiveMill-Max Manufacturing Corp.
CONTACT SPRING LOADED T/H GOLD
Deep-Dive with AI
Search across all available documentation for this part.

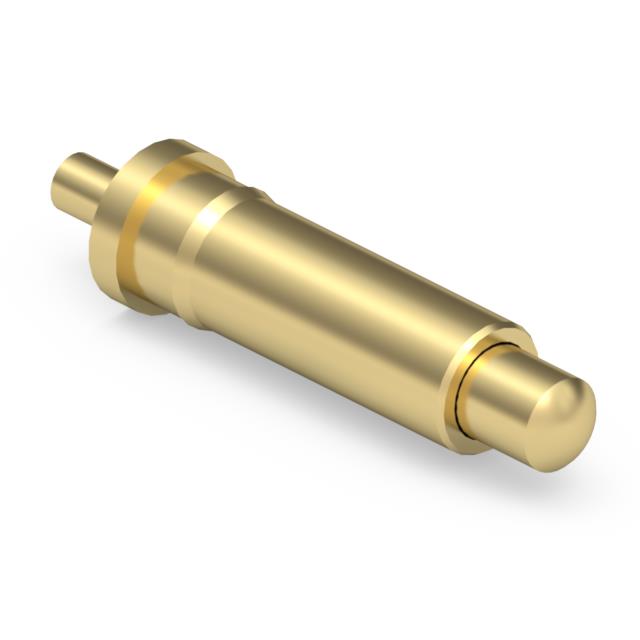

0980-0-15-20-75-14-11-0
ActiveMill-Max Manufacturing Corp.
CONTACT SPRING LOADED T/H GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0980-0-15-20-75-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 5.2 A |
| Mating Cycles | 1000000 |
| Maximum Working Height [Max] | 6.3 mm |
| Maximum Working Height [Max] | 0.248 in |
| Minimum Working Height [Min] | 5 mm |
| Minimum Working Height [Min] | 0.197 in |
| Mounting Type | Through Hole |
| Operating Force - Initial | 10 gf |
| Operating Force - Mid Compression | 60 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 1.83 mm |
| Pad Layout Dimension [diameter] | 0.072 in |
| Plunger Size [diameter] | 0.042 in |
| Plunger Size [diameter] | 1.07 mm |
| Recommended Working Height | 5.6 mm |
| Recommended Working Height | 0.22 in |
