KKD-8-RT

Active

Essentra Access Solutions

CBL CLIP C-TYPE GRAY ADHESIVE

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP C-TYPE GRAY ADHESIVE

Technical Specifications

Parameters and characteristics for this part

Specification	KKD-8-RT

Adhesive	Acrylic Based (RMS-15)
Color	Gray
Features	Flame Retardant
Height [z]	0.73 in
Height [z]	18.54 mm
Length	19.05 mm
Length	0.75 in
Material	Polyvinyl Chloride (PVC)
Material Flammability Rating	UL94 V-0
Mounting Type	Adhesive
Opening Size [diameter]	12.7 mm
Opening Size [diameter]	0.5 in
Type	C-Type, Clip
Width [y]	0.75 in
Width [y]	19.05 mm

Part	Material	Features	Color	Length	Length	Height [z]	Height [z]	Opening Size [diameter]	Opening Size [diameter]	Adhesive	Mounting Type	Material Flammability Rating	Type	Width [y]	Width [y]	Opening Size
Essentra Access Solutions KKD-8-RT	Polyvinyl Chloride (PVC)	Flame Retardant	Gray	19.05 mm	0.75 in	0.73 in	18.54 mm	12.7 mm	0.5 in	Acrylic Based (RMS-15)	Adhesive	UL94 V-0	C-Type Clip	0.75 in	19.05 mm
Essentra Access Solutions KKD-4-RT	Polyvinyl Chloride (PVC)	Flame Retardant	Gray	12.7 mm	0.5 in				0.25 in	Acrylic Based (RMS-15)	Adhesive	UL94 V-0	C-Type Clip			6.35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

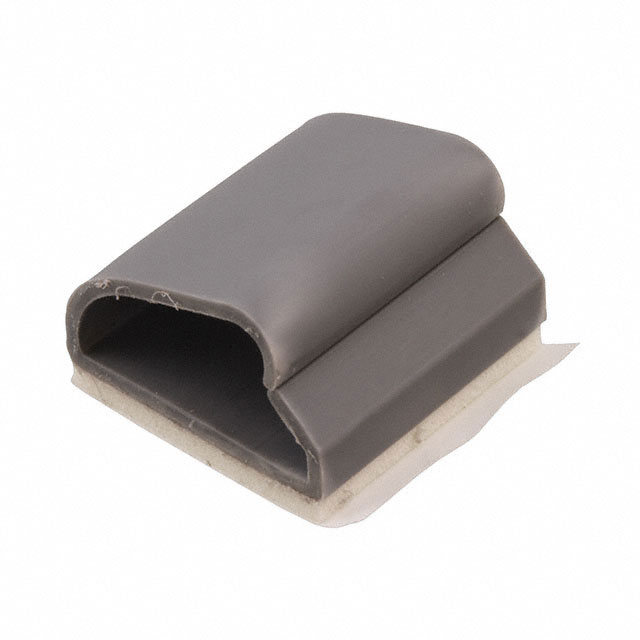

Cable Clip, C-Type Gray Adhesive 0.500" (12.70mm)

Technical documentation and resources

No documents available
