M7WWK-3706J
Active3M
D-SUB CABLE MFU37K/MC37G/MFU37K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M7WWK-3706J | M7WWK Series |
|---|---|---|
| 1st Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| 2nd Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Color | - | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 6 ft | 6 - 10 ft |
| Length | 1.83 m | 1.83 - 3.05 m |
| Number of Positions | 37 | 9 - 50 |
| Shielding | Unshielded | Unshielded |
| Type | DB37 | DB9, DB37, DB15, DB25, DB50 |
| Usage | Patch | Patch |
M7WWK Series
D-SUB CABLE MFU09K/MC10G/MFU09K
| Part | Contact Finish | Usage | Shielding | Number of Positions | 1st Connector | Length | Length | 2nd Connector | Type | Contact Finish Thickness | Contact Finish Thickness | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | Patch | Unshielded | 9 | Female Sockets, Receptacle | 10 ft | 3.05 m | Receptacle, Female Sockets | DB9 | 0.76 Ám | 30 Áin | ||
Gold | Patch | Unshielded | 37 | Female Sockets, Receptacle | 6 ft | 1.83 m | Receptacle, Female Sockets | DB37 | 0.76 Ám | 30 Áin | ||
Gold | Patch | Unshielded | 9 | Female Sockets, Receptacle | 6 ft | 1.83 m | Receptacle, Female Sockets | DB9 | 0.76 Ám | 30 Áin | Multiple, Ribbon | |
Gold | Patch | Unshielded | 15 | Female Sockets, Receptacle | 10 ft | 3.05 m | Receptacle, Female Sockets | DB15 | 0.76 Ám | 30 Áin | Multiple, Ribbon | |
Gold | Patch | Unshielded | Female Sockets, Receptacle | 10 ft | 3.05 m | Receptacle, Female Sockets | DB25 | 0.76 Ám | 30 Áin | Multiple, Ribbon | ||
Gold | Patch | Unshielded | 50 | Female Sockets, Receptacle | 6 ft | 1.83 m | Receptacle, Female Sockets | DB50 | 0.76 Ám | 30 Áin | ||
Gold | Patch | Unshielded | 15 | Female Sockets, Receptacle | 10 ft | 3.05 m | Receptacle, Female Sockets | DB15 | 0.76 Ám | 30 Áin | ||
Gold | Patch | Unshielded | 9 | Female Sockets, Receptacle | 10 ft | 3.05 m | Receptacle, Female Sockets | DB9 | 0.76 Ám | 30 Áin | Multiple, Ribbon | |
Gold | Patch | Unshielded | Female Sockets, Receptacle | 6 ft | 1.83 m | Receptacle, Female Sockets | DB25 | 0.76 Ám | 30 Áin | |||
Gold | Patch | Unshielded | 37 | Female Sockets, Receptacle | 10 ft | 3.05 m | Receptacle, Female Sockets | DB37 | 0.76 Ám | 30 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.36 | |
| 10 | $ 28.10 | |||
| 25 | $ 25.47 | |||
| 50 | $ 23.70 | |||
| 100 | $ 22.09 | |||
| 250 | $ 20.20 | |||
| 500 | $ 18.93 | |||
Description
General part information
M7WWK Series

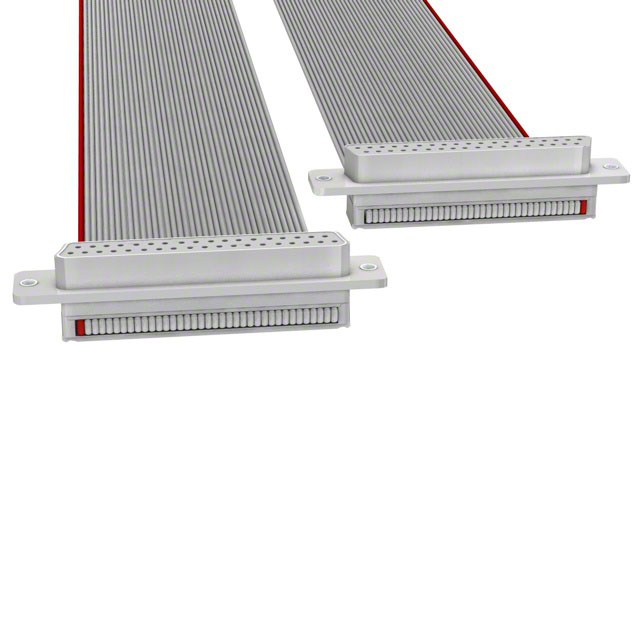

D-Sub Cable Assembly DB37 Gray, Ribbon 6.00' (1.83m) Receptacle, Female Sockets to Receptacle, Female Sockets Unshielded
