M7WWK-2510R

Active

D-SUB CABLE MFU25K/MC26M/MFU25K

Search across all available documentation for this part.

Active

D-SUB CABLE MFU25K/MC26M/MFU25K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

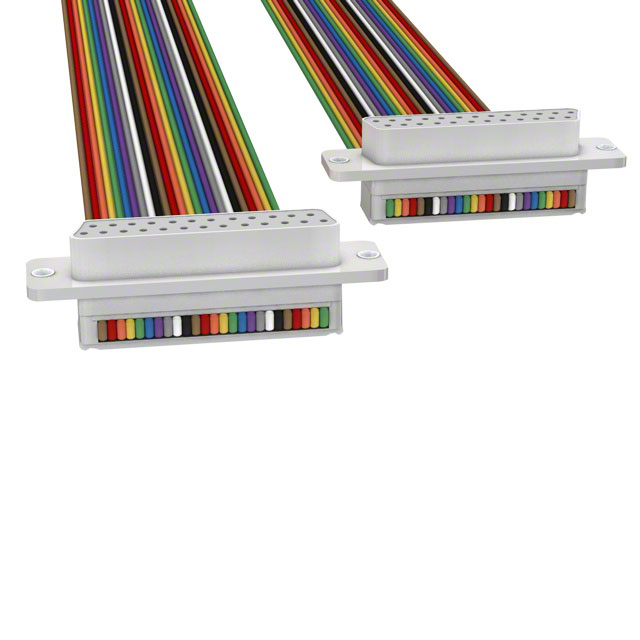

D-Sub Cable Assembly DB25 Multiple, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Receptacle, Female Sockets Unshielded

Technical documentation and resources

Parameters and characteristics commom to parts in this series

D-SUB CABLE MFU09K/MC10G/MFU09K

Part	Contact Finish	Usage	Shielding	Number of Positions	1st Connector	Length	Length	2nd Connector	Type	Contact Finish Thickness	Contact Finish Thickness	Color
3M M7WWK-0910J	Gold	Patch	Unshielded	9	Female Sockets, Receptacle	10 ft	3.05 m	Receptacle, Female Sockets	DB9	0.76 Ám	30 Áin
3M M7WWK-3706J	Gold	Patch	Unshielded	37	Female Sockets, Receptacle	6 ft	1.83 m	Receptacle, Female Sockets	DB37	0.76 Ám	30 Áin
3M M7WWK-0906R	Gold	Patch	Unshielded	9	Female Sockets, Receptacle	6 ft	1.83 m	Receptacle, Female Sockets	DB9	0.76 Ám	30 Áin	Multiple, Ribbon
3M M7WWK-1510R	Gold	Patch	Unshielded	15	Female Sockets, Receptacle	10 ft	3.05 m	Receptacle, Female Sockets	DB15	0.76 Ám	30 Áin	Multiple, Ribbon
3M M7WWK-2510R	Gold	Patch	Unshielded		Female Sockets, Receptacle	10 ft	3.05 m	Receptacle, Female Sockets	DB25	0.76 Ám	30 Áin	Multiple, Ribbon
3M M7WWK-5006J	Gold	Patch	Unshielded	50	Female Sockets, Receptacle	6 ft	1.83 m	Receptacle, Female Sockets	DB50	0.76 Ám	30 Áin
3M M7WWK-1510J	Gold	Patch	Unshielded	15	Female Sockets, Receptacle	10 ft	3.05 m	Receptacle, Female Sockets	DB15	0.76 Ám	30 Áin
3M M7WWK-0910R	Gold	Patch	Unshielded	9	Female Sockets, Receptacle	10 ft	3.05 m	Receptacle, Female Sockets	DB9	0.76 Ám	30 Áin	Multiple, Ribbon
3M M7WWK-2506J	Gold	Patch	Unshielded		Female Sockets, Receptacle	6 ft	1.83 m	Receptacle, Female Sockets	DB25	0.76 Ám	30 Áin
3M M7WWK-3710J	Gold	Patch	Unshielded	37	Female Sockets, Receptacle	10 ft	3.05 m	Receptacle, Female Sockets	DB37	0.76 Ám	30 Áin
