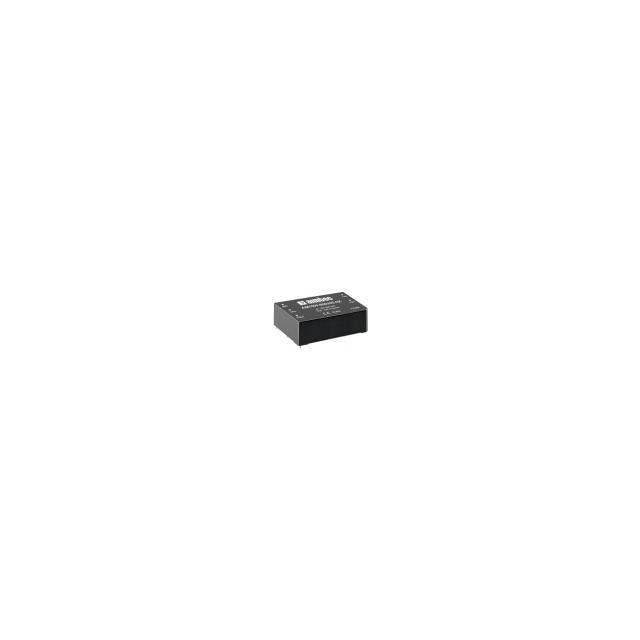

AM10W-60005S-NZ

Obsolete

aimtec

DC DC CONVERTER 5V 10W

Search across all available documentation for this part.

Obsolete

aimtec

DC DC CONVERTER 5V 10W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 5V 10W

Part	Number of Outputs	Type	Efficiency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Voltage - Isolation	Package / Case	Applications	Current - Output (Max) [Max]	Voltage - Output 1	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
aimtec AM10W-80005S-NZ	1	Isolated Module	64 %	1.89 in	48 mm	2.76 in	0.93 in	23.5 mm	70 mm	CE	4000 V	5-DIP Module	ITE (Commercial)	2 A	5 V	10 W	200 V	1500 V	Through Hole
aimtec AM10W-60005S-NZ	1	Isolated Module	72 %	1.89 in	48 mm	2.76 in	0.93 in	23.5 mm	70 mm	CE	4000 V		ITE (Commercial)	2 A	5 V	10 W	100 VDC	1000 V	Through Hole	-40 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.02

General part information

Isolated Module DC DC Converter 1 Output 5V 2A 100V - 1000V Input
