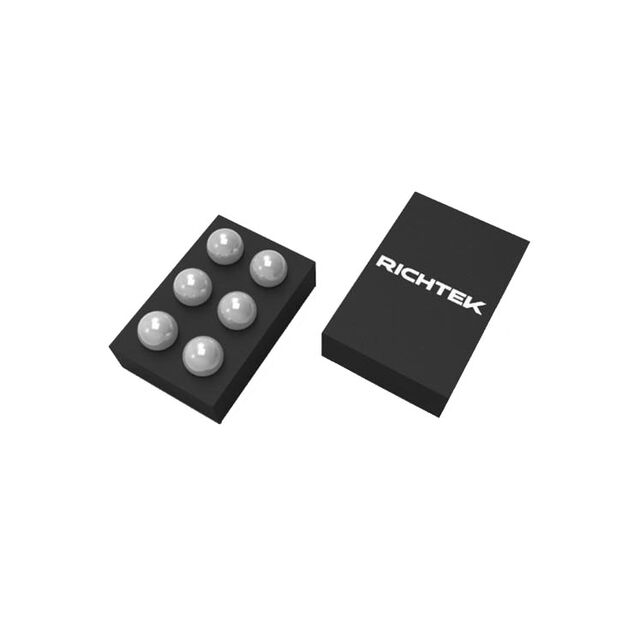

RT5713-K1WSC(2)
ActiveRichtek USA Inc.
IC REG BUCK 0.8V/1.8V 6WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
RT5713-K1WSC(2)
ActiveRichtek USA Inc.
IC REG BUCK 0.8V/1.8V 6WLCSP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RT5713-K1WSC(2) |
|---|---|
| Current - Output | 500 mA |
| Frequency - Switching | 1.2 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | WLCSP, 6-XFBGA |
| Supplier Device Package | 6-WLCSP (1.42x.89) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.2 V |
| Voltage - Output (Min/Fixed) | 1.8 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.49 | |
| 10 | $ 0.94 | |||
| 25 | $ 0.80 | |||
| 100 | $ 0.63 | |||
| 250 | $ 0.55 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.46 | |||
| Digi-Reel® | 1 | $ 1.49 | ||
| 10 | $ 0.94 | |||
| 25 | $ 0.80 | |||
| 100 | $ 0.63 | |||
| 250 | $ 0.55 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.46 | |||
| Tape & Reel (TR) | 3000 | $ 0.40 | ||
Description
General part information
RT5713 Series
Buck Switching Regulator IC Positive Fixed 0.8V, 1.8V 1 Output 500mA 6-XFBGA, WLCSP
Documents
Technical documentation and resources
No documents available
